WZZG 4PCS/lot 7203C AC ACM B BW BM 7203-2RS 17X40X12mm Precision Angular Contact Bearings

$30.89 USD
Shipping calculated at checkout.
Model and size

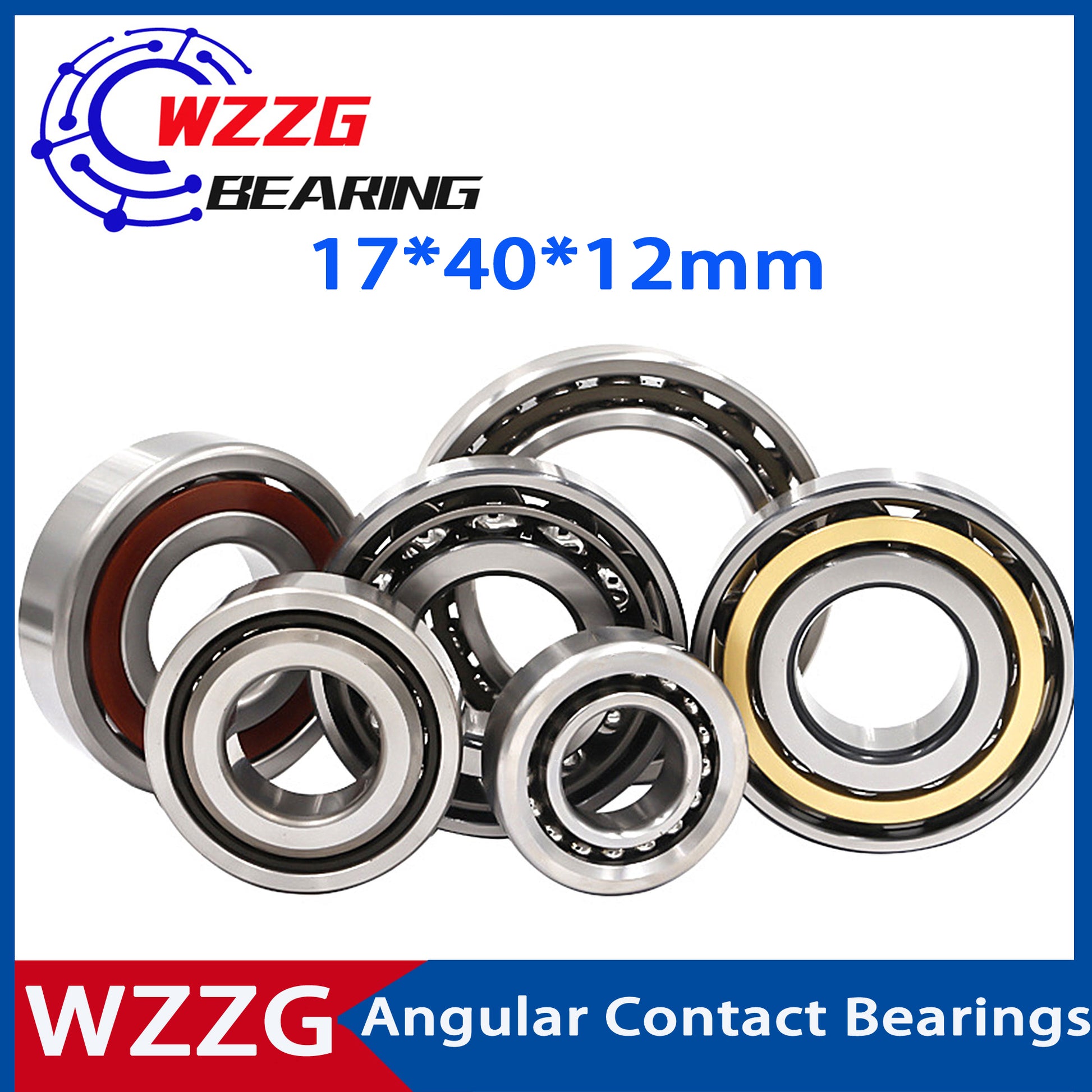

WZZG Angular contact ball bearings 7203



Model Number: 7203

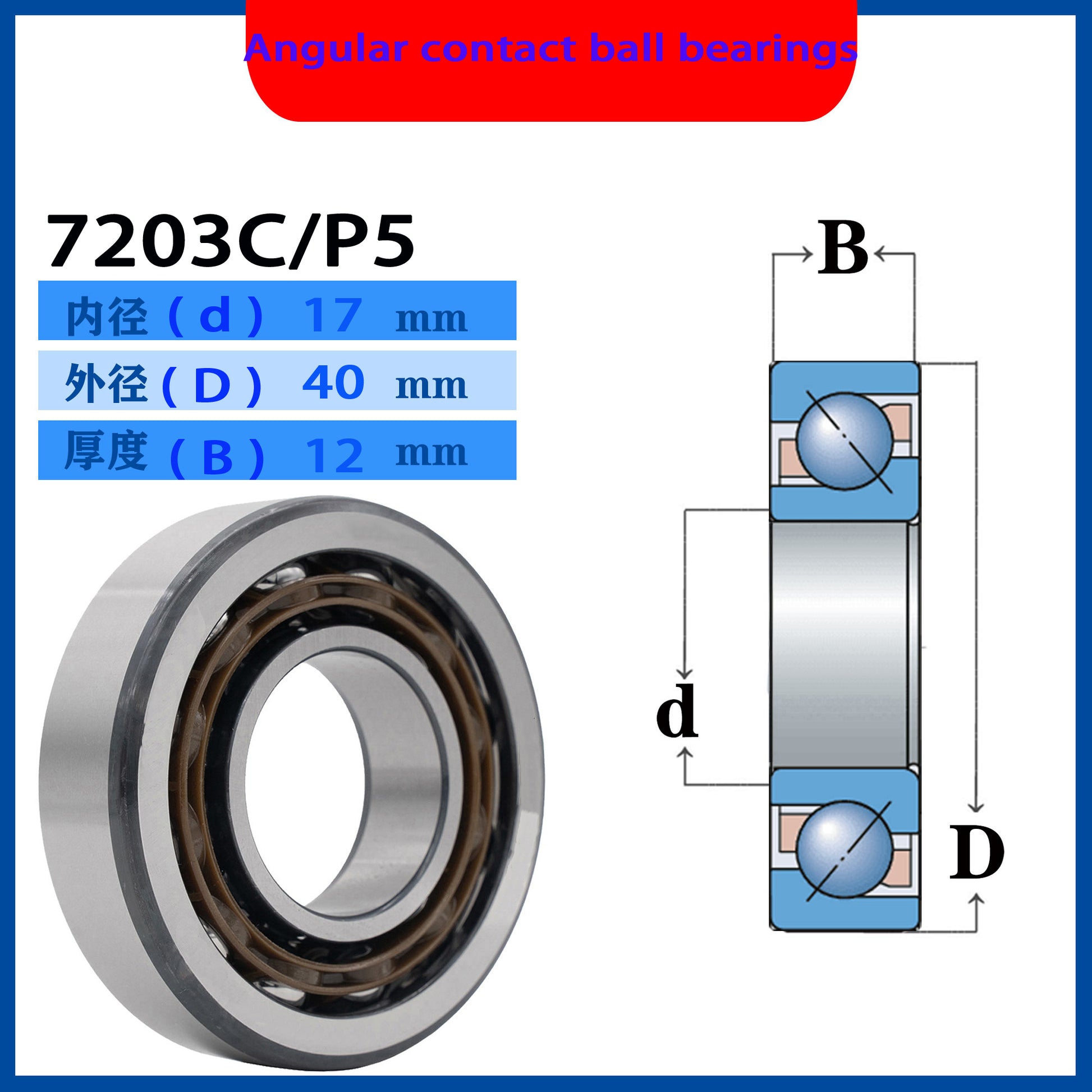

7203C : 17*40*12 mm ( Nylon retainer, 15° contact angle )

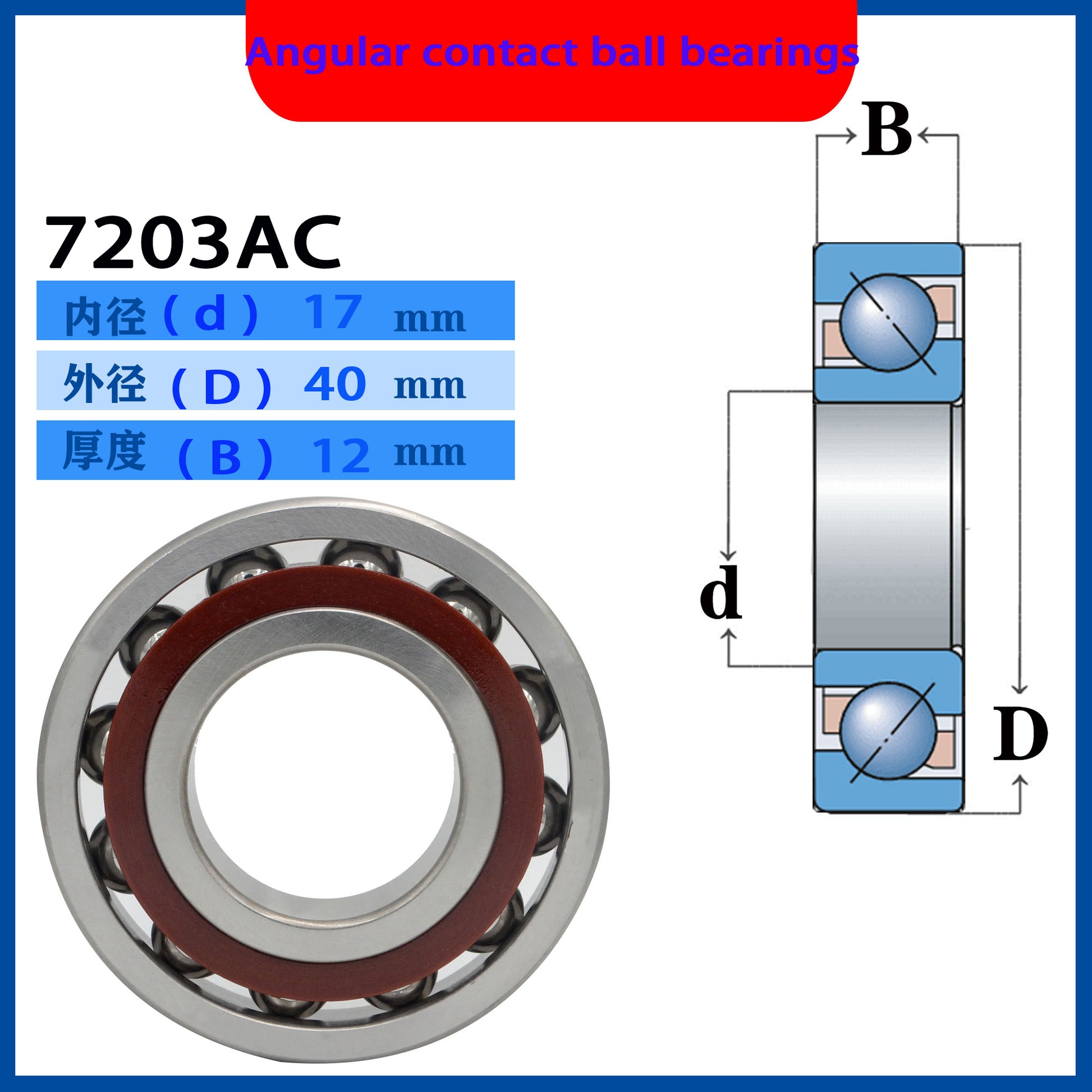

7203AC : 17*40*12 mm ( Bakelite retainer, 25° contact angle )

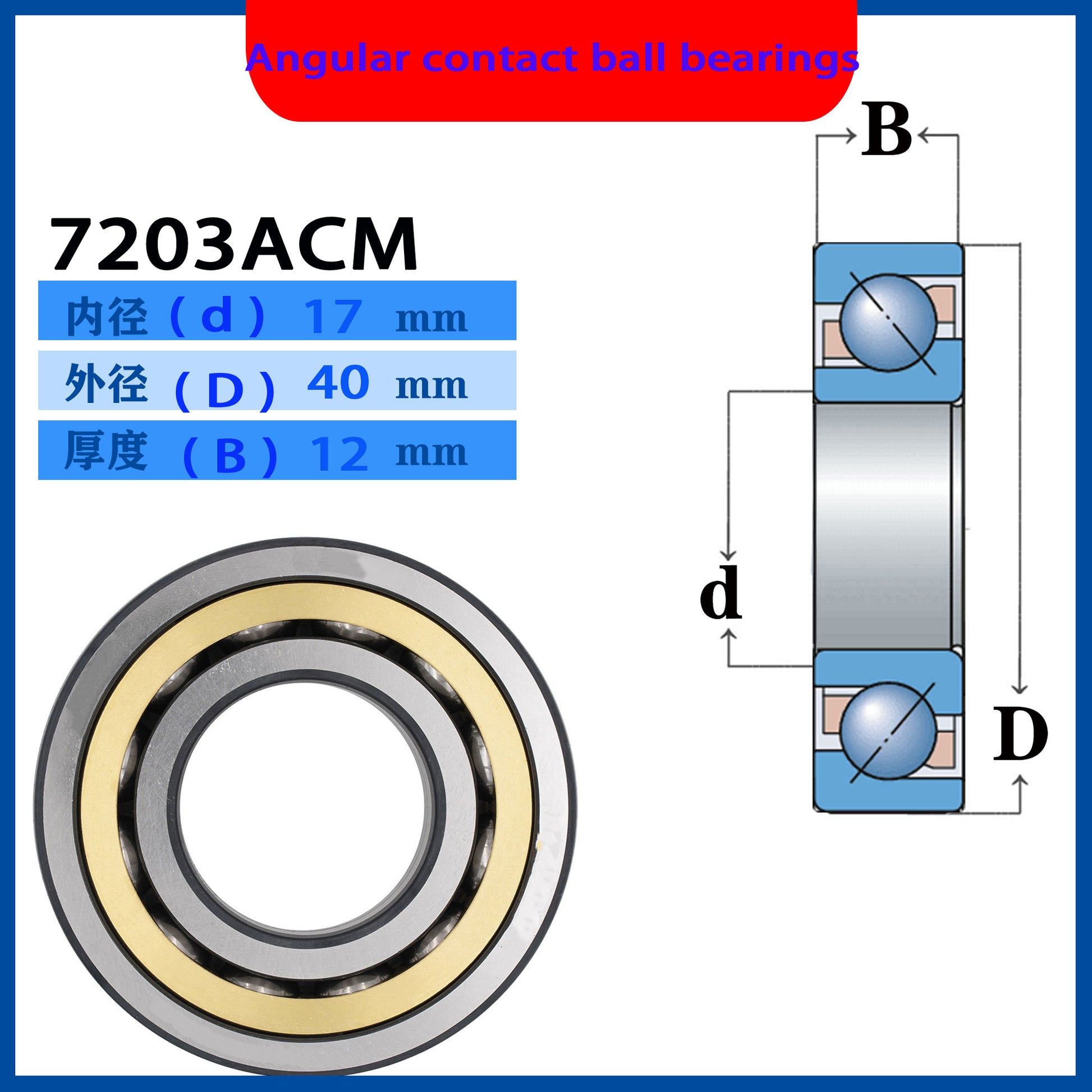

7203ACM : 17*40*12 mm ( Copper retainer, 25° contact angle )

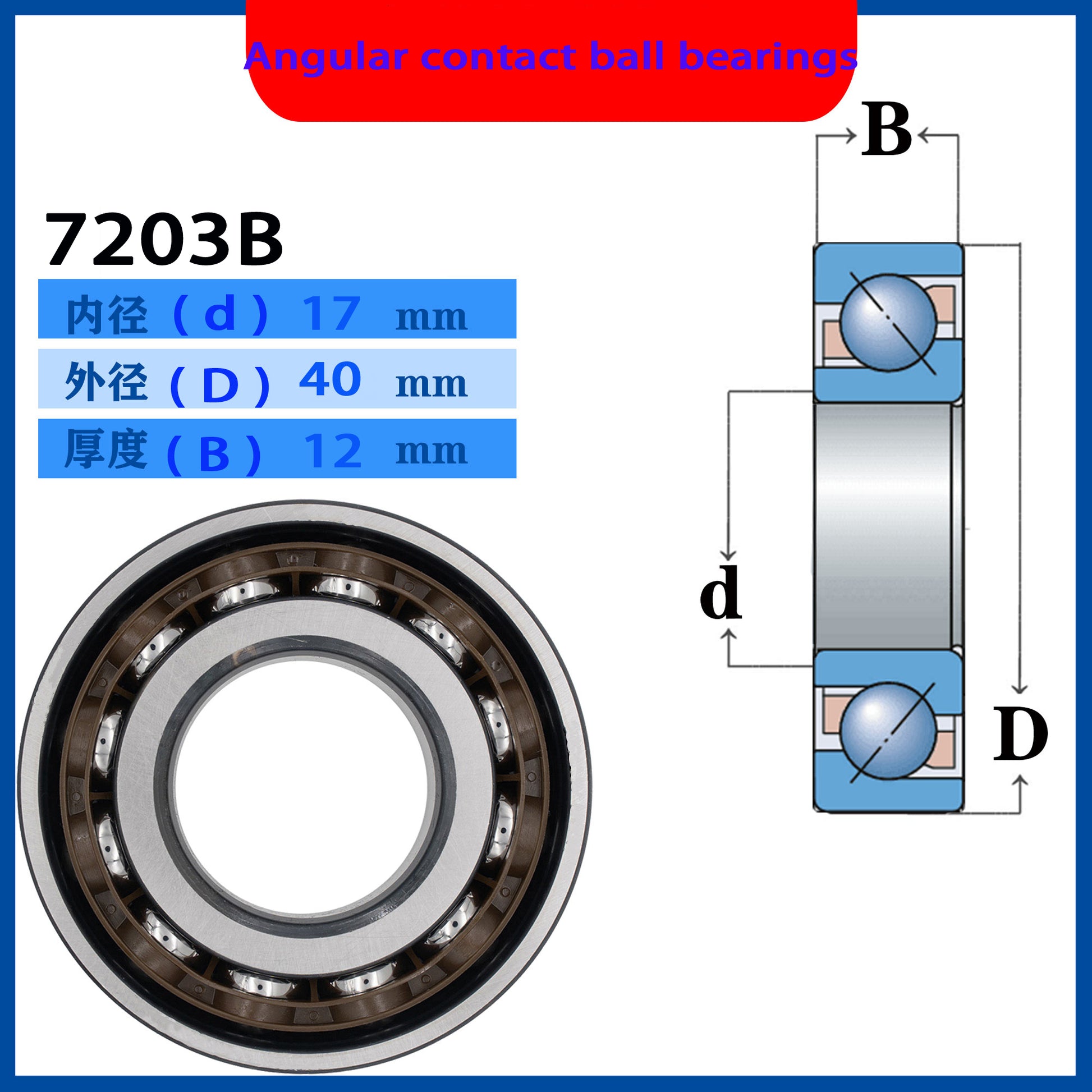

7203B : 17*40*12 mm (  Nylon retainer, 40° contact angle )



7203BW : 17*40*12 mm ( Steel retainer, 40° contact angle )

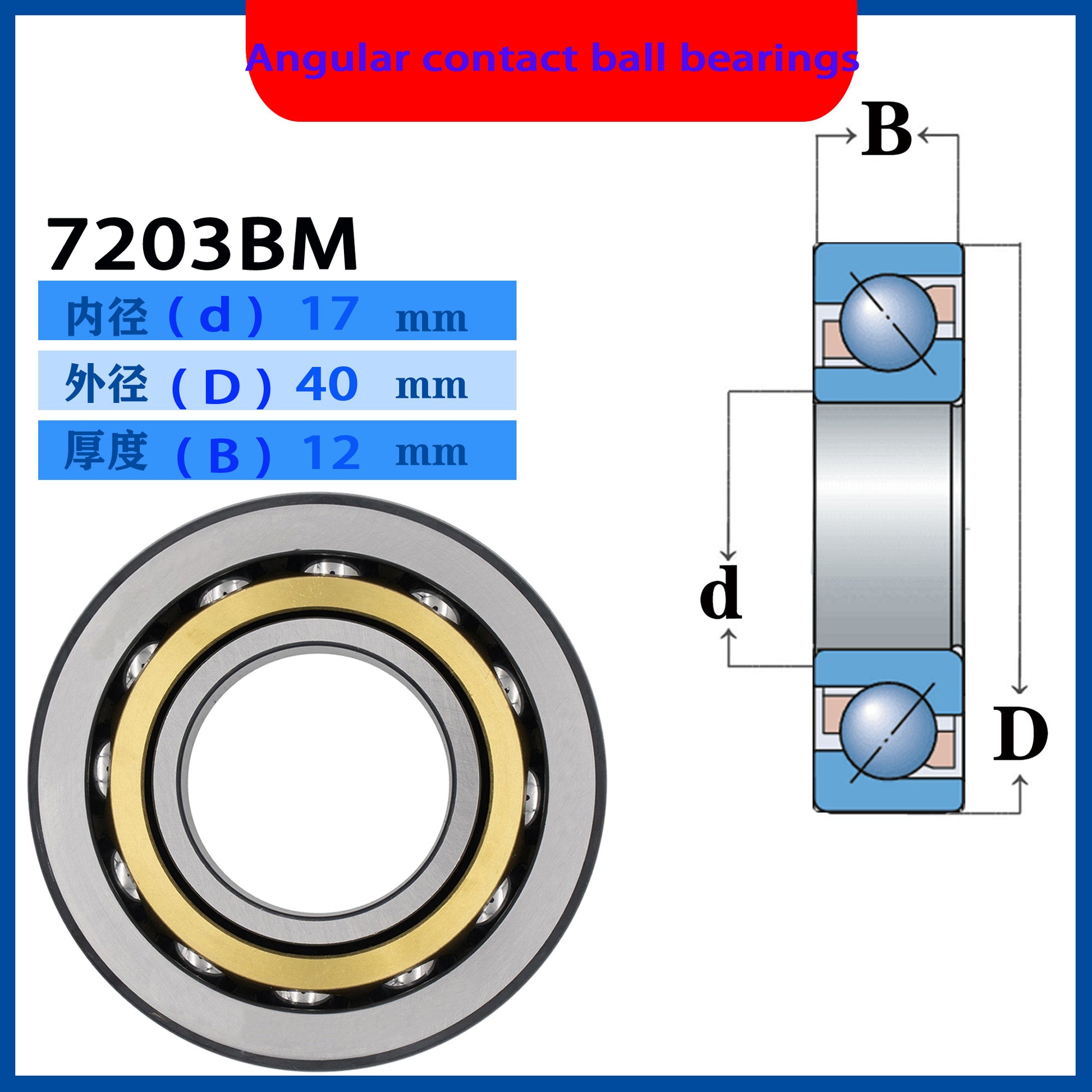

7203BM : 17*40*12 mm ( Copper retainer, 40° contact angle )

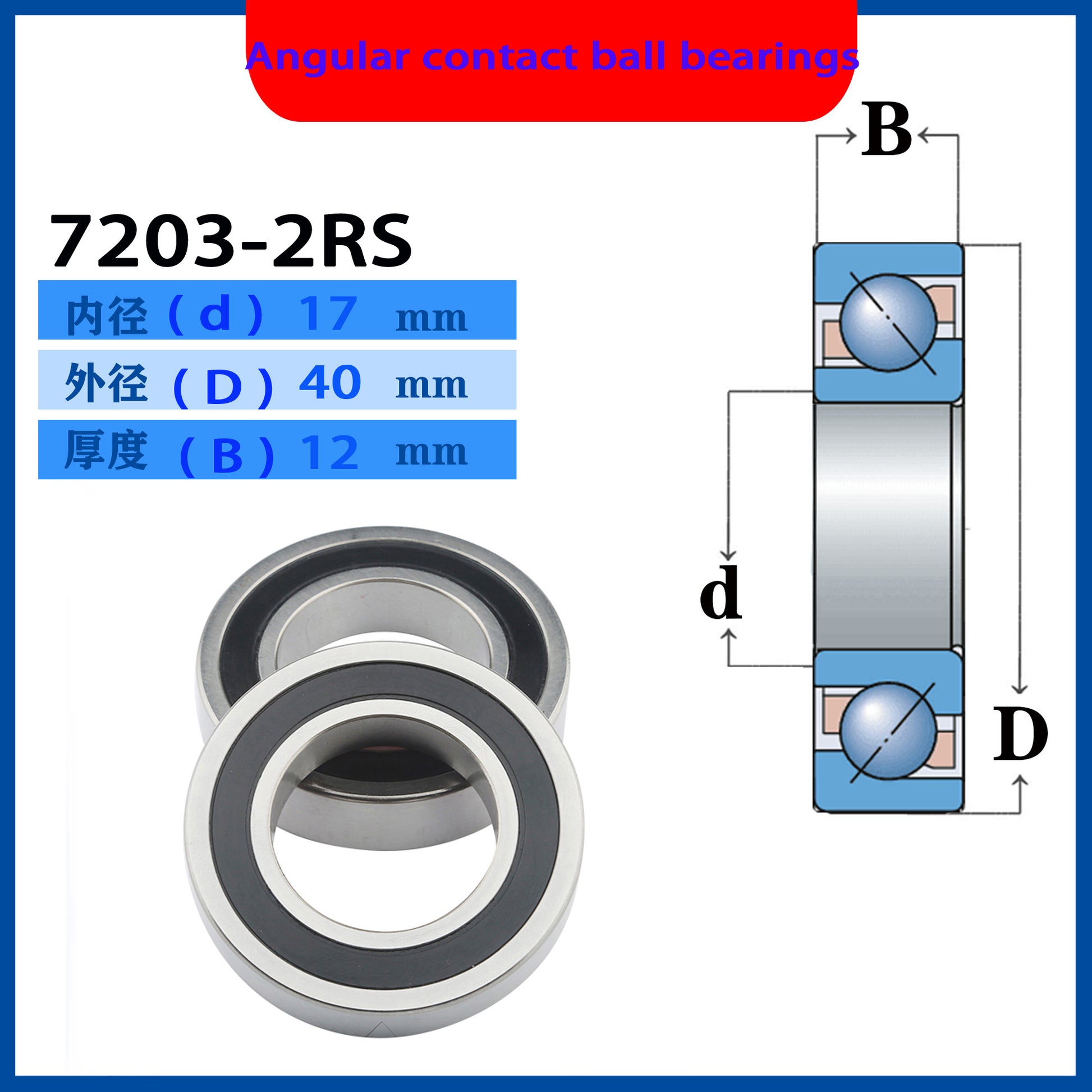

7203-2RS : 17*40*12 mm ( Sealed )



Number of rolling body columns: single column



Material: bearing steel









Angular contact ball bearing

Angular contact ball bearings are particularly suitable for carrying combined (axial and radial) loads. Sometimes, they also can carry pure axial load and operate in higher speed. Under radial load, axial component force will be produced which must be counteracted. So the bearings are normally adjust against a second bearing.

Angular Contact Ball Bearing is widely used in cars, compressors, construction, electric motors, food industry, home appliances etc. As a rolling element, it turns the world.
