WZZG 1pcs 22205 22206 22207 22208 22209 22210 22211 22212 CA/W33-2RS sealed type Spherical roller bearings

$21.49 USD
Shipping calculated at checkout.
Model and size
Cage material

WZZG sealed type Spherical roller bearings 22205-22212CA/W33-2RS



Rolling bearing seat material: bearing steel

Cage material: Copper retainer

Grade: P5

 Modle and size:

22205CA/W33-2RS: 25*52*18mm

22206CA/W33-2RS: 30*62*20mm

22207CA/W33-2RS: 35*72*23mm

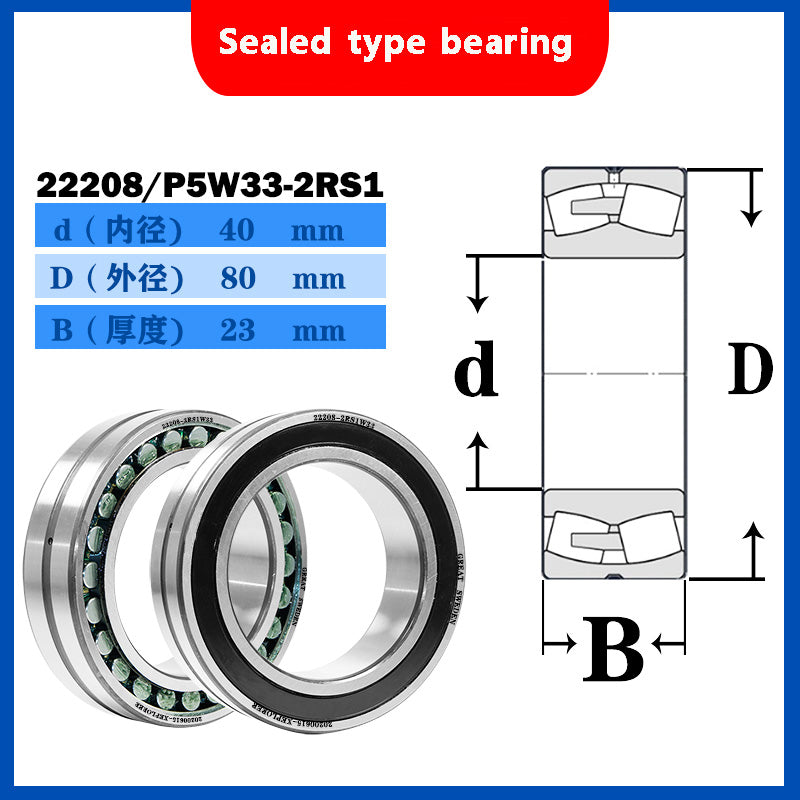

22208CA/W33-2RS: 40*80*23mm

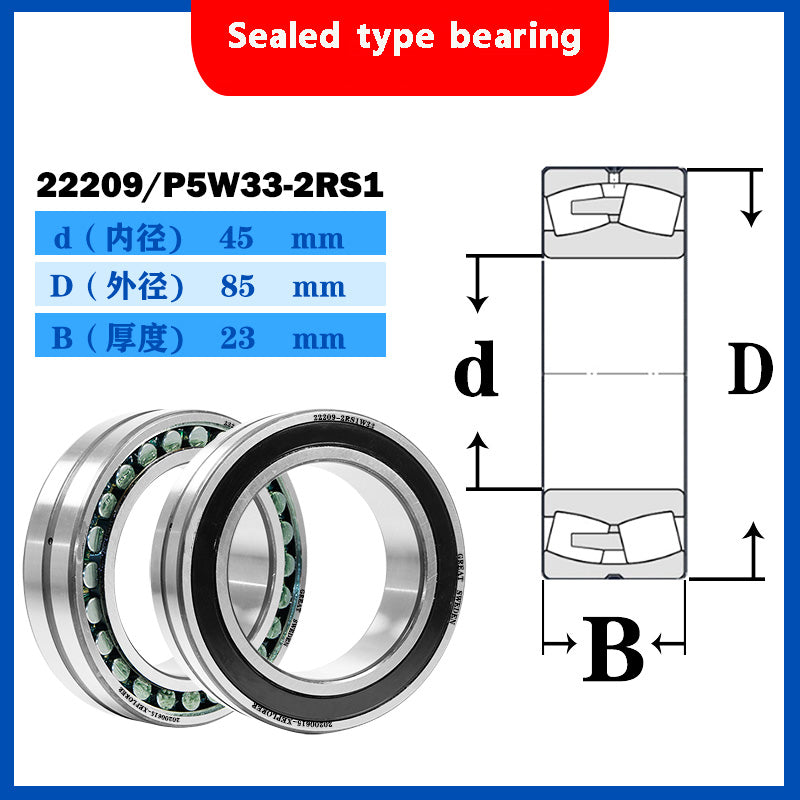

22209CA/W33-2RS: 45*85*23mm

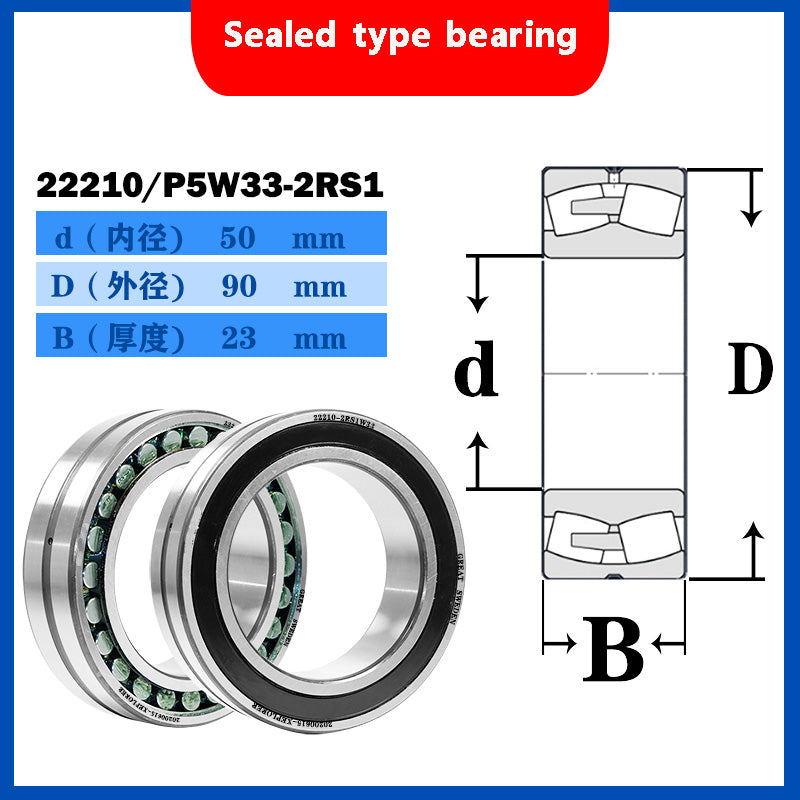

22210CA/W33-2RS: 50*90*23mm

22211CA/W33-2RS: 55*100*25mm

22212CA/W33-2RS: 60*110*28mm



The double row spherical roller bearing has two rows of symmetrical spherical rollers. The spherical roller has a common shape with the inner ring and the outer ring, and the bearing can compensate 0.5-2 degrees between the shaft and the bearing seat through the corresponding spherical surface. The inclination is such that the concentricity error formed after the bending deformation of the shaft and the bearing mounting portion is compensated. The bearing has a high radial load capacity. It can also bear both radial and axial loads.





Welcome to purchase consulting, thank you!

If you need other model bearing but Didn't find it on my store,Please contact me, thank you!

Bearing online can buy have spot can place an order (to support a large number of wholesale), if there are special requirements or higher quality, Please contact me!

For enterprises to provide professional supporting bearing, welcome consultation discussion!





Spherical Roller Bearing

The double row spherical roller bearing has two rows of symmetrical spherical rollers. The spherical roller has a common shape with the inner ring and the outer ring, and the bearing can compensate 0.5-2 degrees between the shaft and the bearing seat through the corresponding spherical surface. The inclination is such that the concentricity error formed after the bending deformation of the shaft and the bearing mounting portion is compensated. The bearing has a high radial load capacity. It can also bear both radial and axial loads.
