WZZG 1pcs 22312 22313 22314 22315 22316 22317 22318 22319 22320 E EK/W33 spherical roller bearings
$103.79
Shipping calculated at checkout.
Accepted Payment Methods
WZZG spherical roller bearings
Name :
22312 22313 22314 22315 22316 22317 22318 22319 22320 E EK/W33
Category:Spherical Roller Bearing
Model and size:
22312: 60*130*46mm
22313: 65*140*48mm
22314: 70*150*51mm
22315: 75*160*55mm
22316: 80*170*58mm

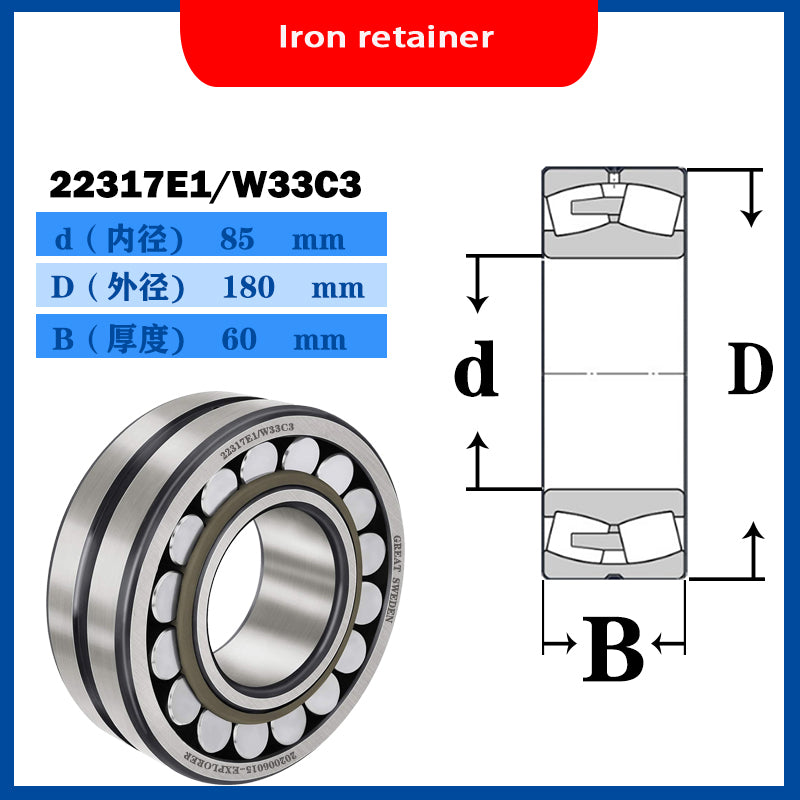

22317: 85*180*60mm
22318: 90*190*64mm

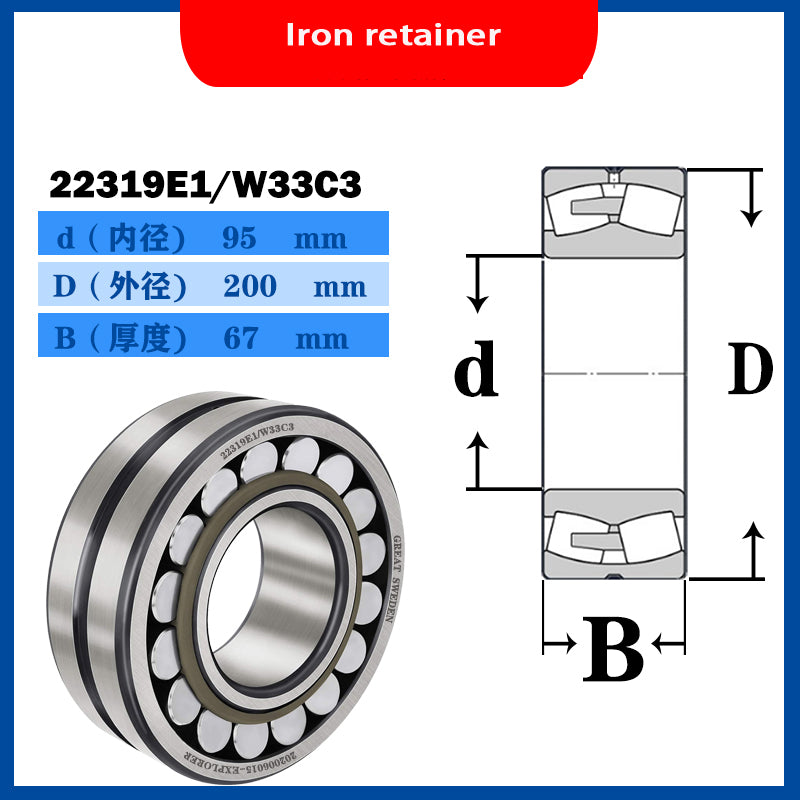

22319: 95*200*67mm

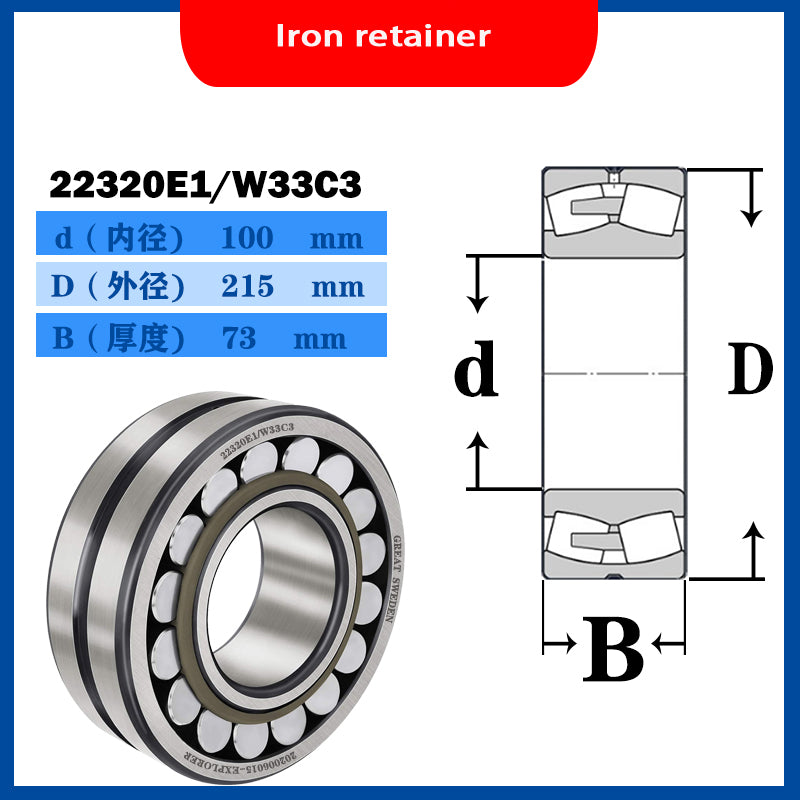

22320: 100*215*73mm
Material: Bearing Bteel
Cage Material:
E: Iron retainer
EK: Iron retainer(The inner hole has a taper)
The double row spherical roller bearing has two rows of symmetrical spherical rollers. The spherical roller has a common shape with the inner ring and the outer ring, and the bearing can compensate 0.5-2 degrees between the shaft and the bearing seat through the corresponding spherical surface. The inclination is such that the concentricity error formed after the bending deformation of the shaft and the bearing mounting portion is compensated. The bearing has a high radial load capacity. It can also bear both radial and axial loads.
