WZZG 1pcs 23020 23022 23024 23026 E EK/W33 CA/W33-2RS spherical roller bearings
$177.69
Shipping calculated at checkout.
Accepted Payment Methods
WZZG spherical roller bearings
Name :
23020 23022 23024 23026 E EK/W33 CA/W33-2RS
Category:Spherical Roller Bearing
Model and size:

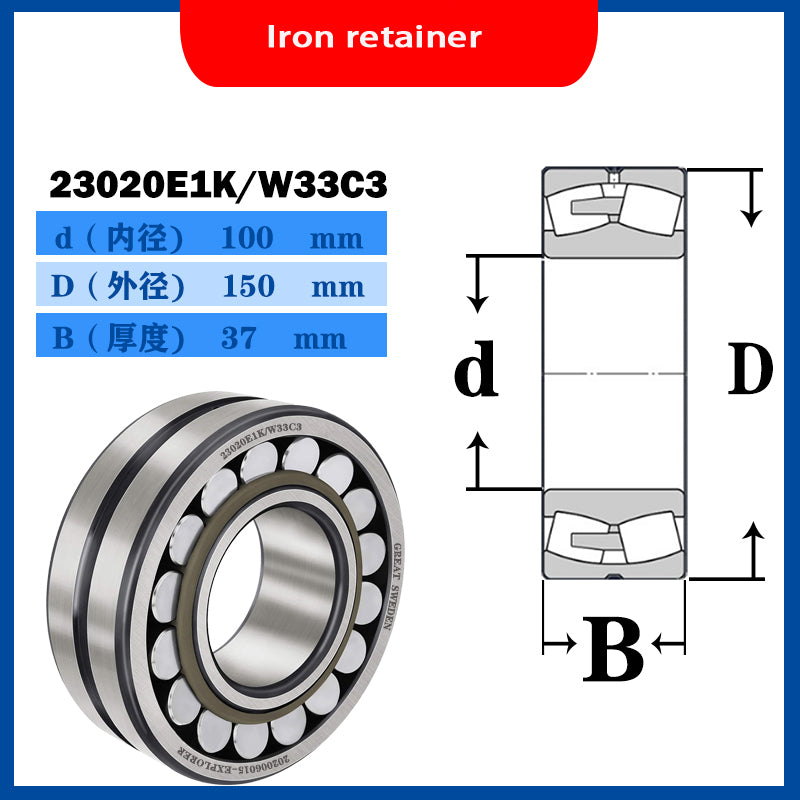

23020: 100*150*37mm

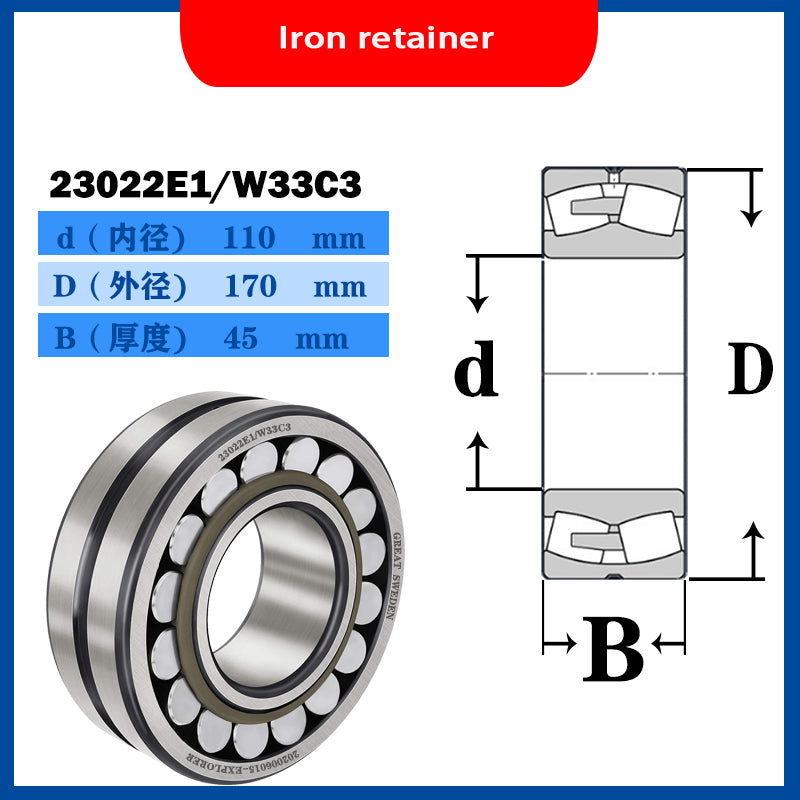

23022: 110*170*45mm
23024: 120*180*46mm
23026: 130*200*52mm
Material: Bearing Bteel
Cage Material:
E: Iron retainer
EK: Iron retainer(The inner hole has a taper)
23020CA/W33-2RS: 100*150*37mm
23022CA/W33-2RS: 110*170*45mm
23024CA/W33-2RS: 120*180*46mm
23026CA/W33-2RS: 130*200*52mm
Rolling bearing seat material: bearing steel
Cage material: Copper retainer
Grade: P5
The double row spherical roller bearing has two rows of symmetrical spherical rollers. The spherical roller has a common shape with the inner ring and the outer ring, and the bearing can compensate 0.5-2 degrees between the shaft and the bearing seat through the corresponding spherical surface. The inclination is such that the concentricity error formed after the bending deformation of the shaft and the bearing mounting portion is compensated. The bearing has a high radial load capacity. It can also bear both radial and axial loads.
Welcome to purchase consulting, thank you!
If you need other model bearing but Didn't find it on my store,Please contact me, thank you!
Bearing online can buy have spot can place an order (to support a large number of wholesale), if there are special requirements or higher quality, Please contact me!
For enterprises to provide professional supporting bearing, welcome consultation discussion!
