WZZG 1pcs 24013 24015 24018 24020 CA CAK CCK CC/W33 spherical roller bearings

$51.59 USD
Shipping calculated at checkout.


Model and size
Cage material

WZZG spherical roller bearings

Name :24013 24015 24018 24020 CA CAK CC CCK/W33

Category:Spherical Roller Bearing

Model and size:

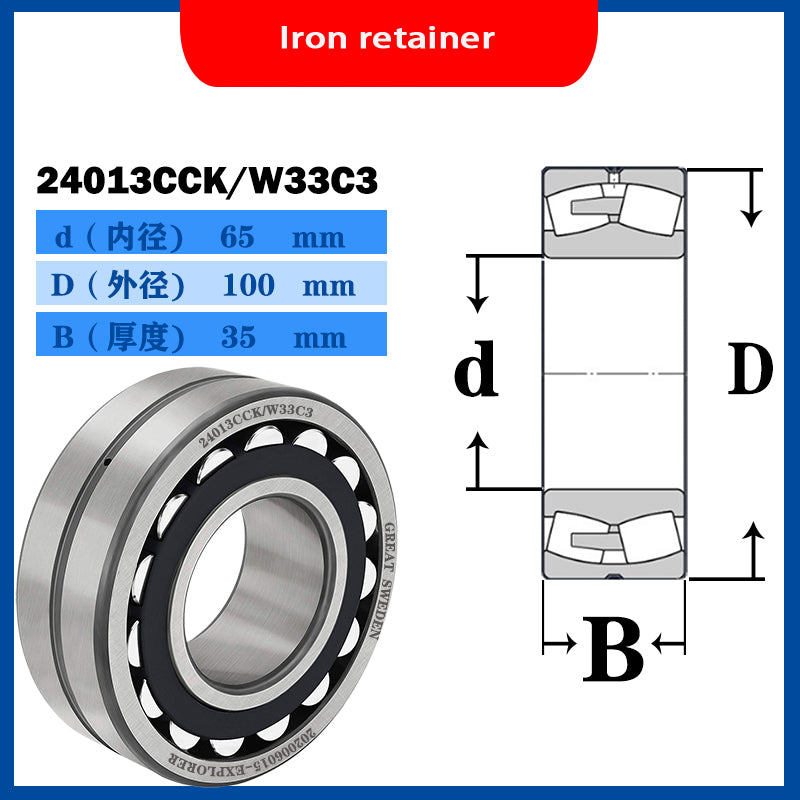

24013: 65*100*35mm

24015: 75*115*40mm

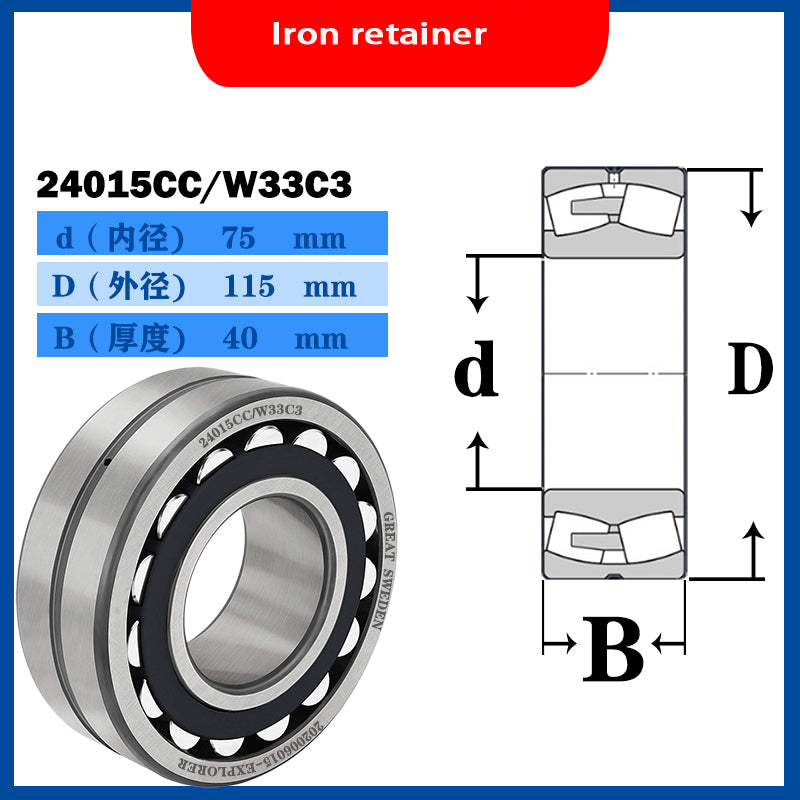

24018: 90*140*50mm

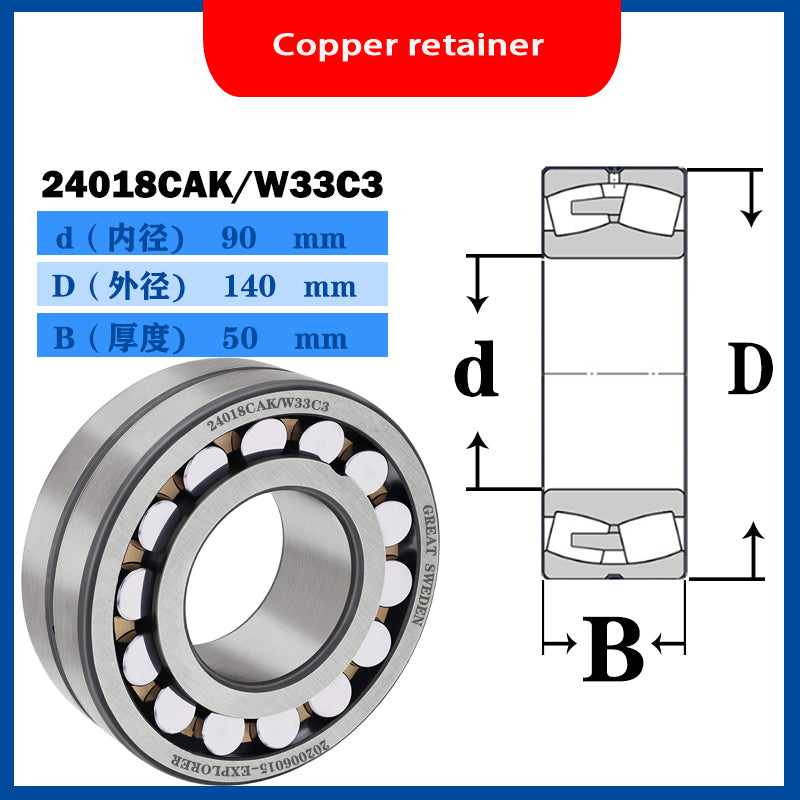

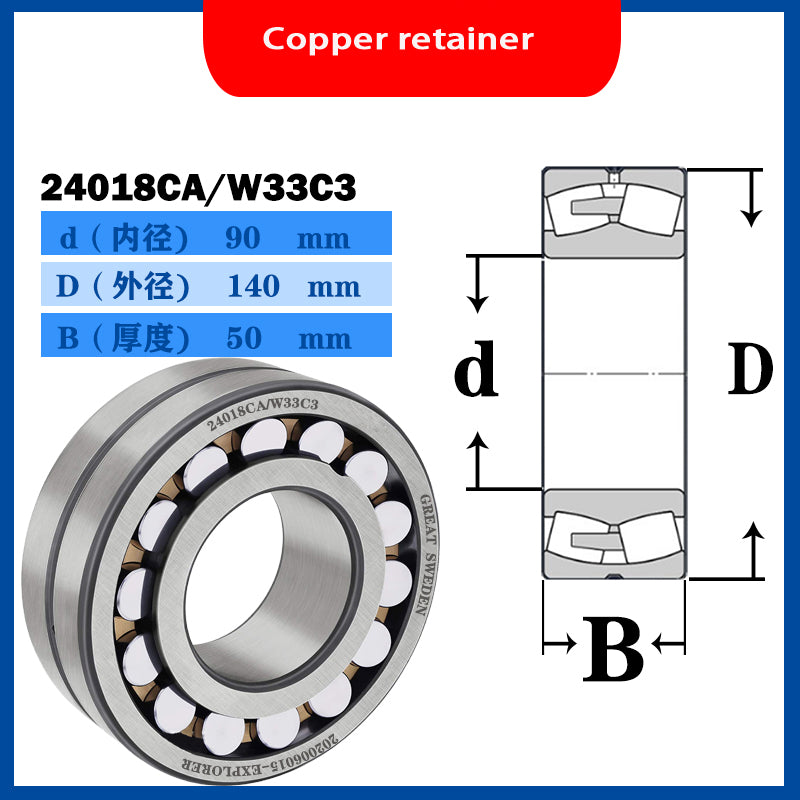

24020: 100*150*50mm

Material: Bearing Bteel

Cage Material:

CA: Brass

CAK: Brass(The inner hole has a taper )

CC:Iron

CCK:Iron(The inner hole has a taper)



The double row spherical roller bearing has two rows of symmetrical spherical rollers. The spherical roller has a common shape with the inner ring and the outer ring, and the bearing can compensate 0.5-2 degrees between the shaft and the bearing seat through the corresponding spherical surface. The inclination is such that the concentricity error formed after the bending deformation of the shaft and the bearing mounting portion is compensated. The bearing has a high radial load capacity. It can also bear both radial and axial loads.









Welcome to purchase consulting, thank you!

If you need other model bearing but Didn't find it on my store,Please contact me, thank you!

Bearing online can buy have spot can place an order (to support a large number of wholesale), if there are special requirements or higher quality, Please contact me!

For enterprises to provide professional supporting bearing, welcome consultation discussion!





Spherical Roller Bearing

The double row spherical roller bearing has two rows of symmetrical spherical rollers. The spherical roller has a common shape with the inner ring and the outer ring, and the bearing can compensate 0.5-2 degrees between the shaft and the bearing seat through the corresponding spherical surface. The inclination is such that the concentricity error formed after the bending deformation of the shaft and the bearing mounting portion is compensated. The bearing has a high radial load capacity. It can also bear both radial and axial loads.

Welcome to buy consultation

If you need another type of bearing but can't find it in my store, please contact me, thank you!

Bearings can be bought online and can be ordered in stock (large wholesale is supported). If you

have special requirements or higher quality, please contact me!

Provide professional supporting bearings for enterprises, welcome to consult and negotiate!
