WZZG 18690/20 (1 PC) Inch Tapered Roller Bearings 46.038*79.375*17.462 mm 100% Brand New High Quality Mechanical Bearings
WZZG 18690/20 (1 PC) Inch Tapered Roller Bearings 46.038*79.375*17.462 mm 100% Brand New High Quality Mechanical Bearings
WZZG 18690/20 (1 PC) Inch Tapered Roller Bearings 46.038*79.375*17.462 mm 100% Brand New High Quality Mechanical Bearings
WZZG 18690/20 (1 PC) Inch Tapered Roller Bearings 46.038*79.375*17.462 mm 100% Brand New High Quality Mechanical Bearings
WZZG 18690/20 (1 PC) Inch Tapered Roller Bearings 46.038*79.375*17.462 mm 100% Brand New High Quality Mechanical Bearings
WZZG 18690/20 (1 PC) Inch Tapered Roller Bearings 46.038*79.375*17.462 mm 100% Brand New High Quality Mechanical Bearings
WZZG 18690/20 (1 PC) Inch Tapered Roller Bearings 46.038*79.375*17.462 mm 100% Brand New High Quality Mechanical Bearings
WZZG 18690/20 (1 PC) Inch Tapered Roller Bearings 46.038*79.375*17.462 mm 100% Brand New High Quality Mechanical Bearings
WZZG 18690/20 (1 PC) Inch Tapered Roller Bearings 46.038*79.375*17.462 mm 100% Brand New High Quality Mechanical Bearings
WZZG 18690/20 (1 PC) Inch Tapered Roller Bearings 46.038*79.375*17.462 mm 100% Brand New High Quality Mechanical Bearings
WZZG 18690/20 (1 PC) Inch Tapered Roller Bearings 46.038*79.375*17.462 mm 100% Brand New High Quality Mechanical Bearings
WZZG 18690/20 (1 PC) Inch Tapered Roller Bearings 46.038*79.375*17.462 mm 100% Brand New High Quality Mechanical Bearings

WZZG 18690/20 (1 PC) Inch Tapered Roller Bearings 46.038*79.375*17.462 mm 100% Brand New High Quality Mechanical Bearings

$16.19
Outer Diameter: 18690-20
Number of Pcs: 1 PC

Accepted Payment Methods

Payment Banner
WZZG 18690/20 (1 PC) Inch Tapered Roller Bearings 46.038*79.375*17.462 mm 100% Brand New High Quality Mechanical Bearings
WZZG Bearing Online
WZZG 18690/20 (1 PC) Inch Tapered Roller Bearings 46.038*79.375*17.462 mm 100% Brand New High Quality Mechanical Bearings
$16.19

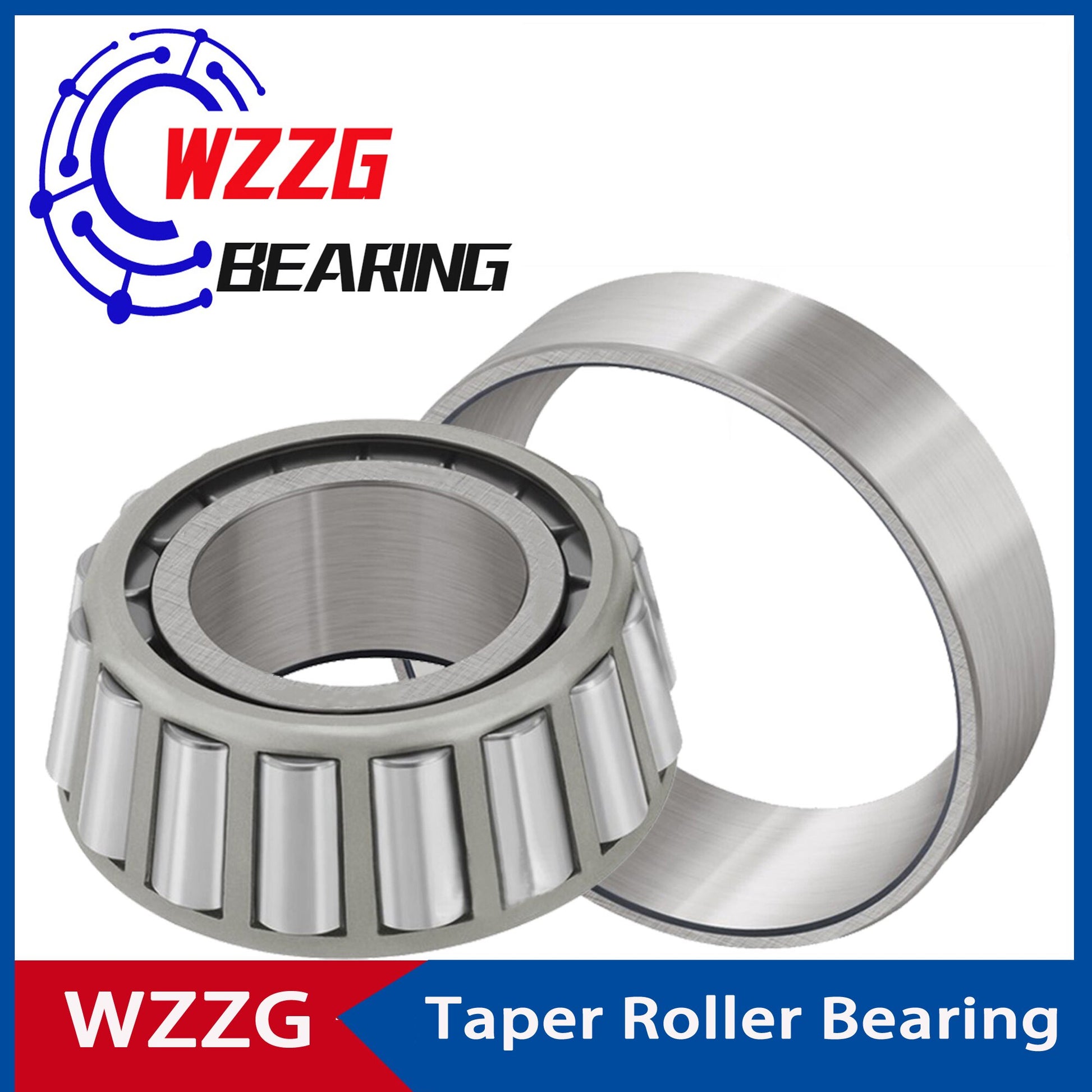

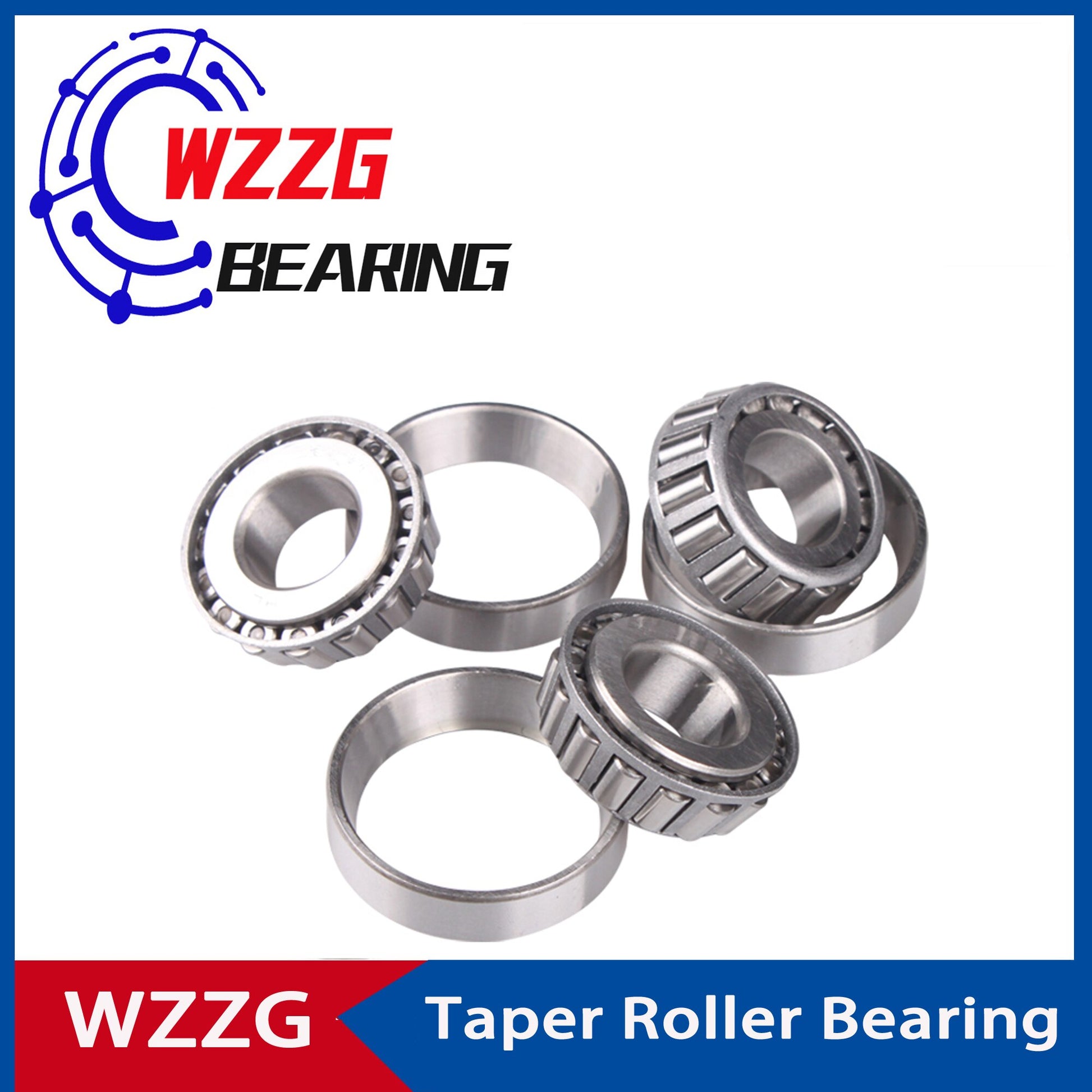

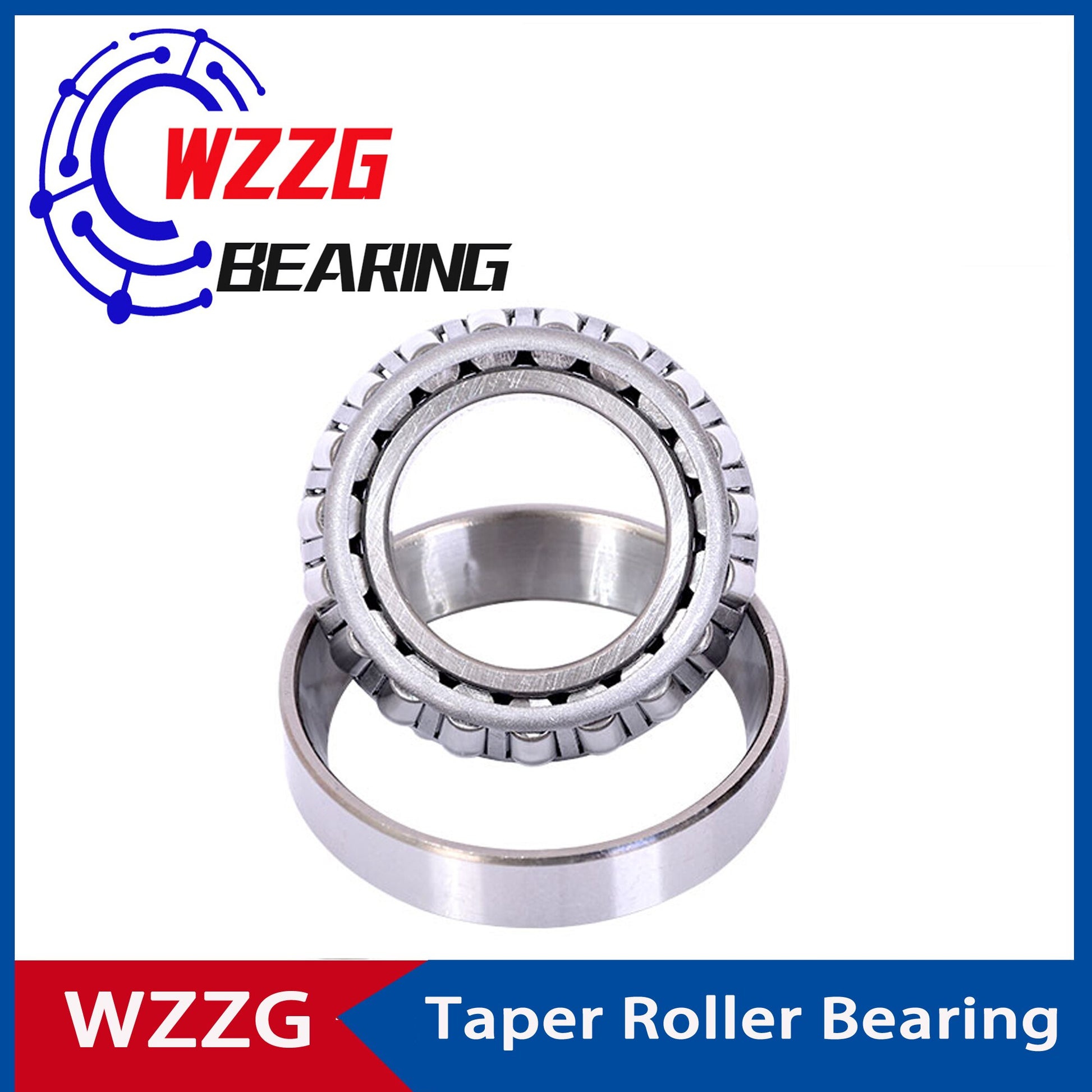

WZZG Inch Tapered Roller Bearings 18690/20



Brand: WZZG



Item: 18690/20



Type: Tapered Roller Bearing

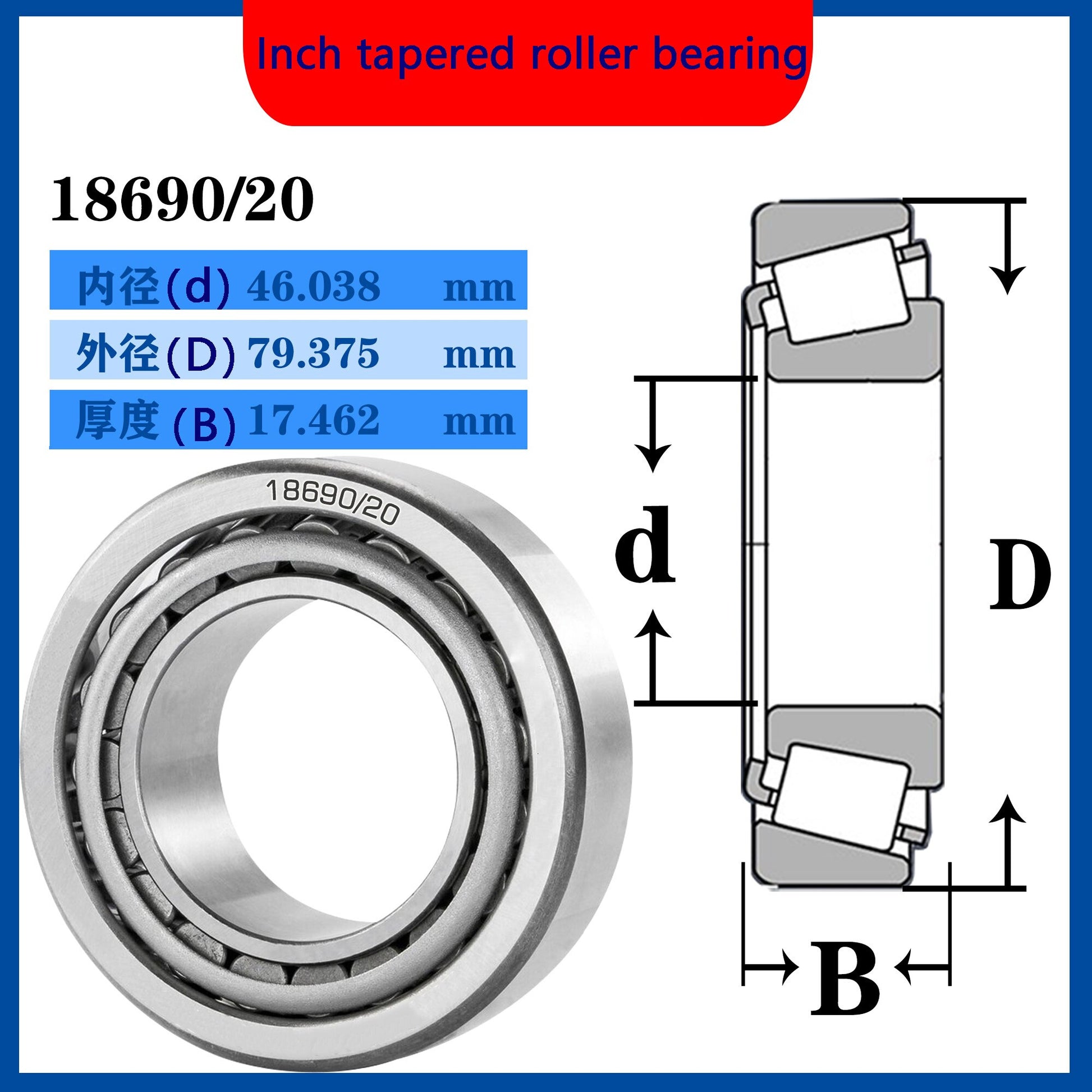

Dimensions: 46.038*79.375*17.462 mm



Inner diameter: 46.038 mm



Outer Diameter:79.375 mm



Width: 17.462 mm



Material: bearing steel



Quantity: 1PC

















Structure of tapered roller bearings





Tapered roller bearings consist of outer ring, inner ring, rollers and cage. The rolling elements of the bearing are tapered rollers, which are guided by the inner ring back rib on the large end face of the roller. The raceway surfaces of the inner and outer rings and the rolling contact surfaces of the rollers are designed so that their respective vertices are at a point on the bearing centerline. Bearings are classified into standard type, intermediate type and steep type according to the contact angle (α). The larger the contact angle, the greater the resistance of the bearing to axial loads.




















Welcome to purchase consulting, thank you!

If you need other model bearing but Didn't find it on my store,Please contact me, thank you!

Bearing online can buy have spot can place an order (to support a large number of wholesale), if there are special requirements or higher quality, Please contact me!

For enterprises to provide professional supporting bearing, welcome consultation discussion!














For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item, only in the case of:

– Received the wrong item.
– Item arrived not as expected (ie. damaged packaging).
– Item had defects.
– Over delivery time.
– The shipper does not allow the goods to be inspected before payment.

The returned product(s) must be in the original packaging, safety wrapped, undamaged and unworn. This means that the item(s) must be safely packed in a carton box for protection during transport, possibly the same carton used to ship to you as a customer.
