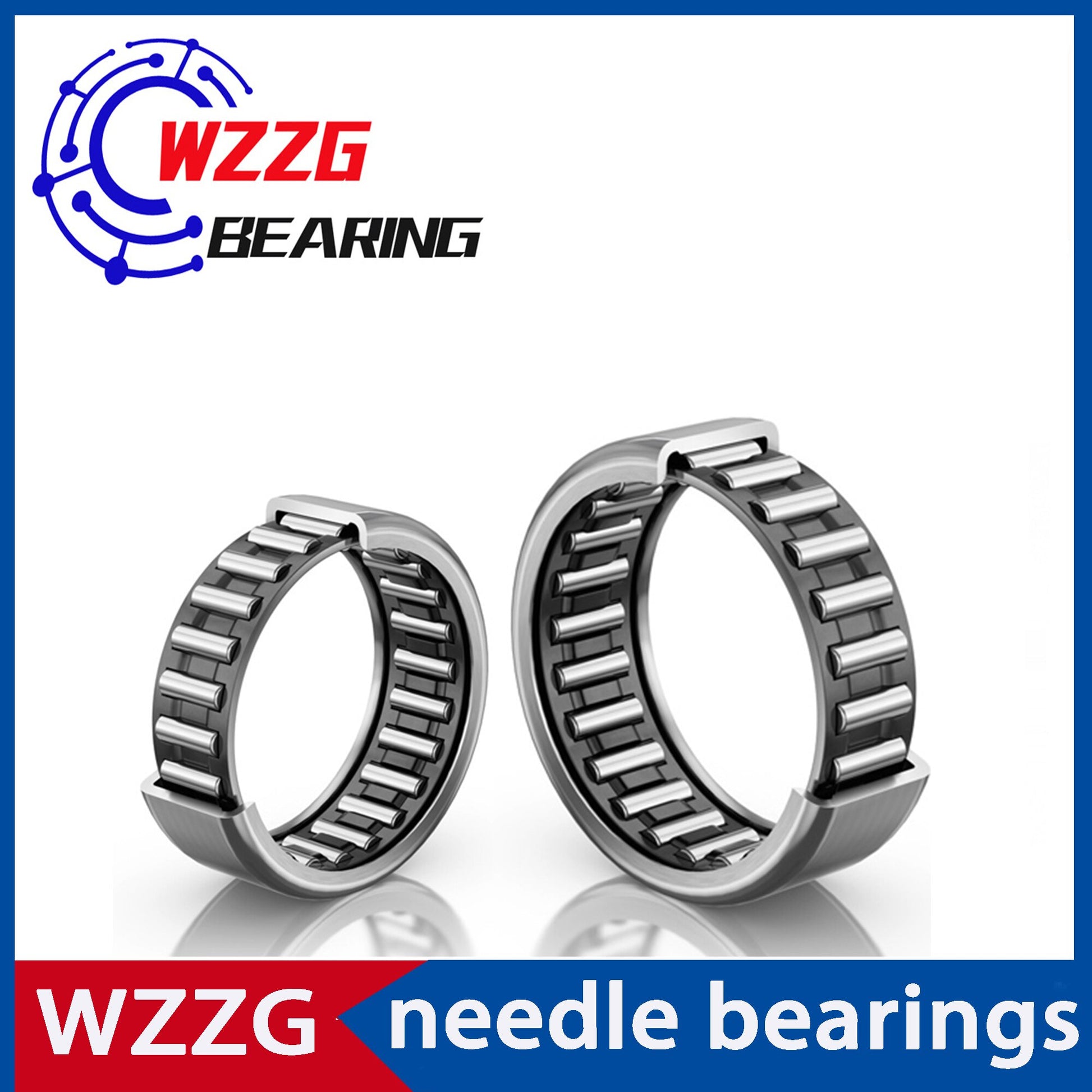

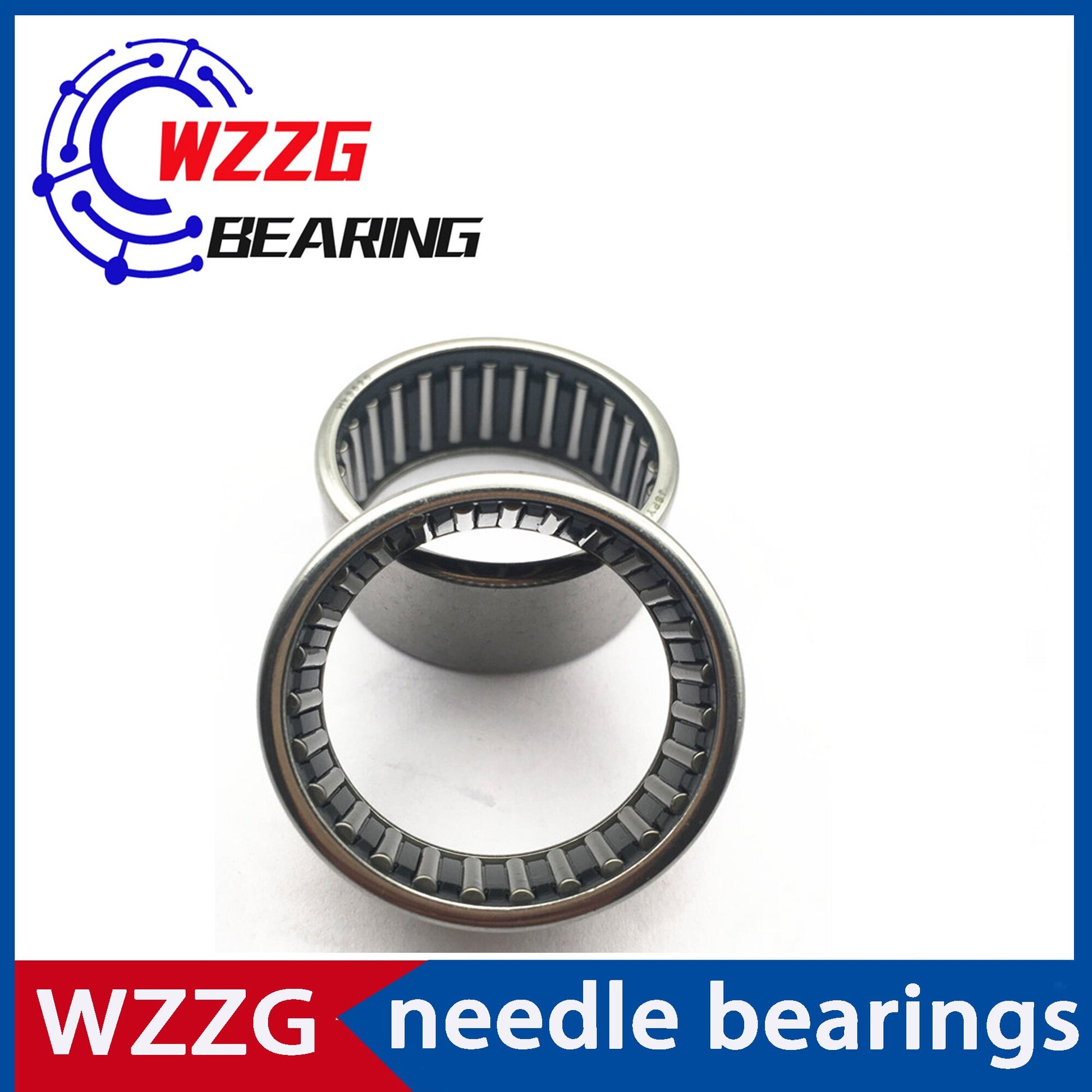

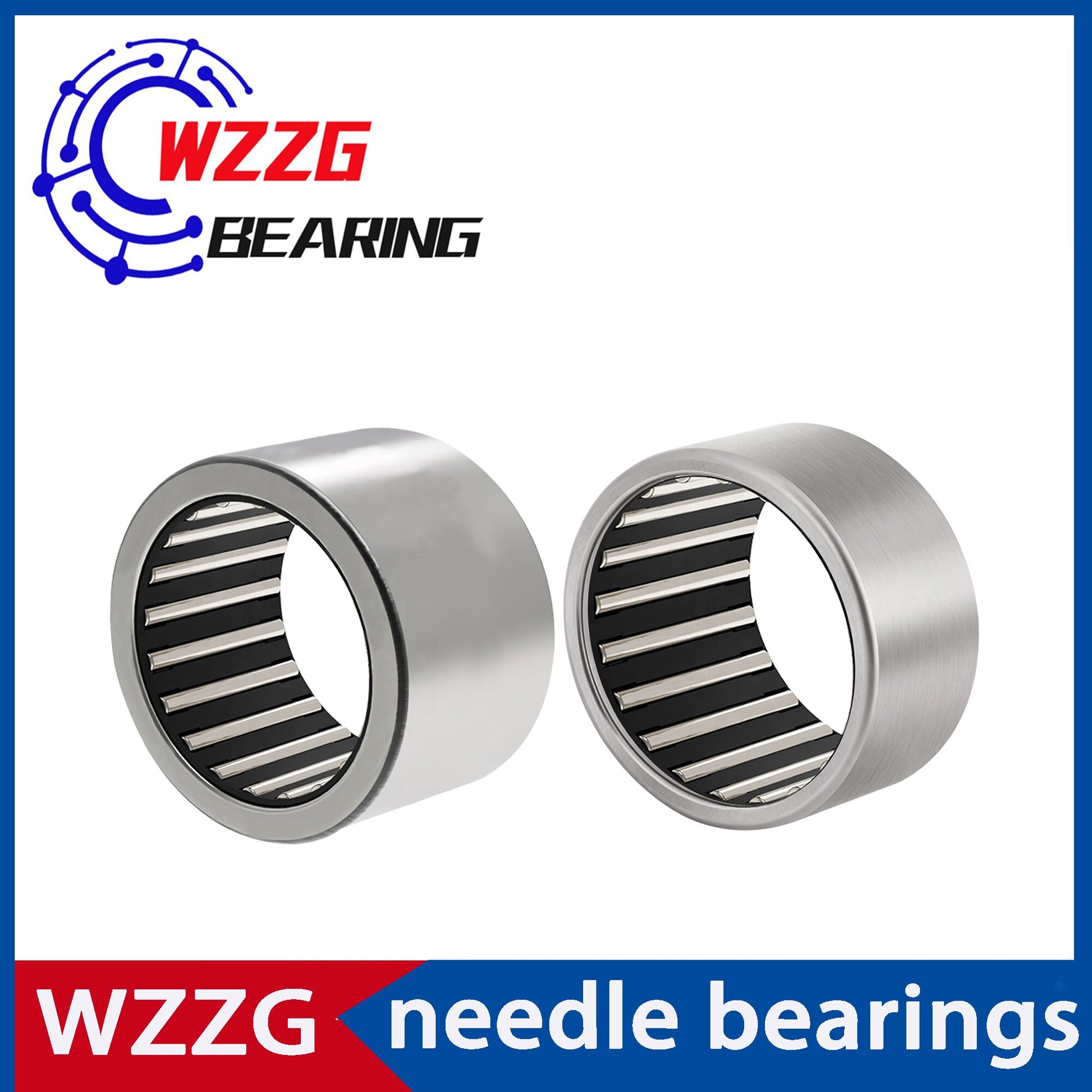

WZZG 10pcs HK2018 Drawn cup cage needle roller bearings size 20*26*18 mm
WZZG Drwan Cup Caged Needle Roller Bearing HK2018
Brand : WZZG
Type:Needle Roller Bearing
Model and size:

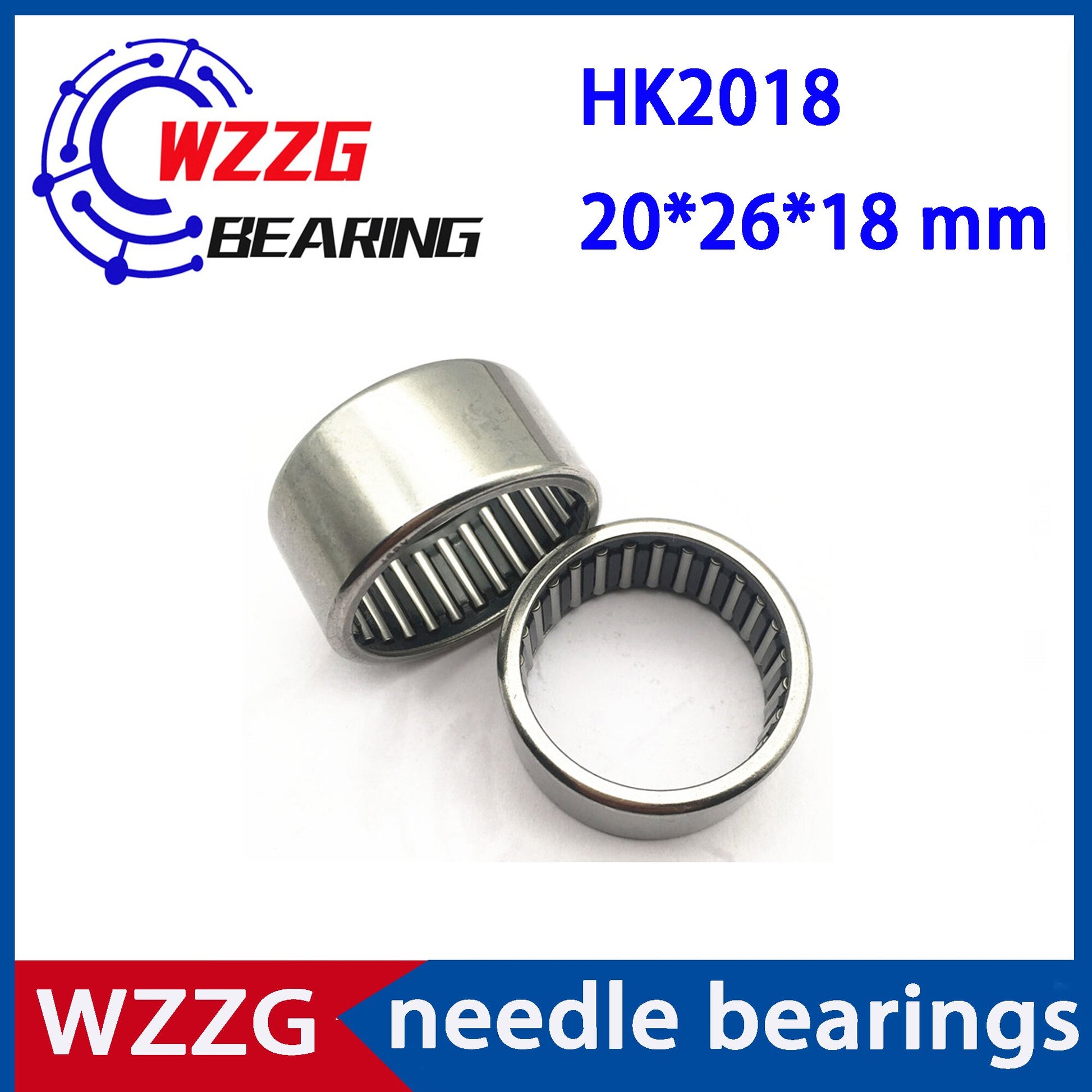

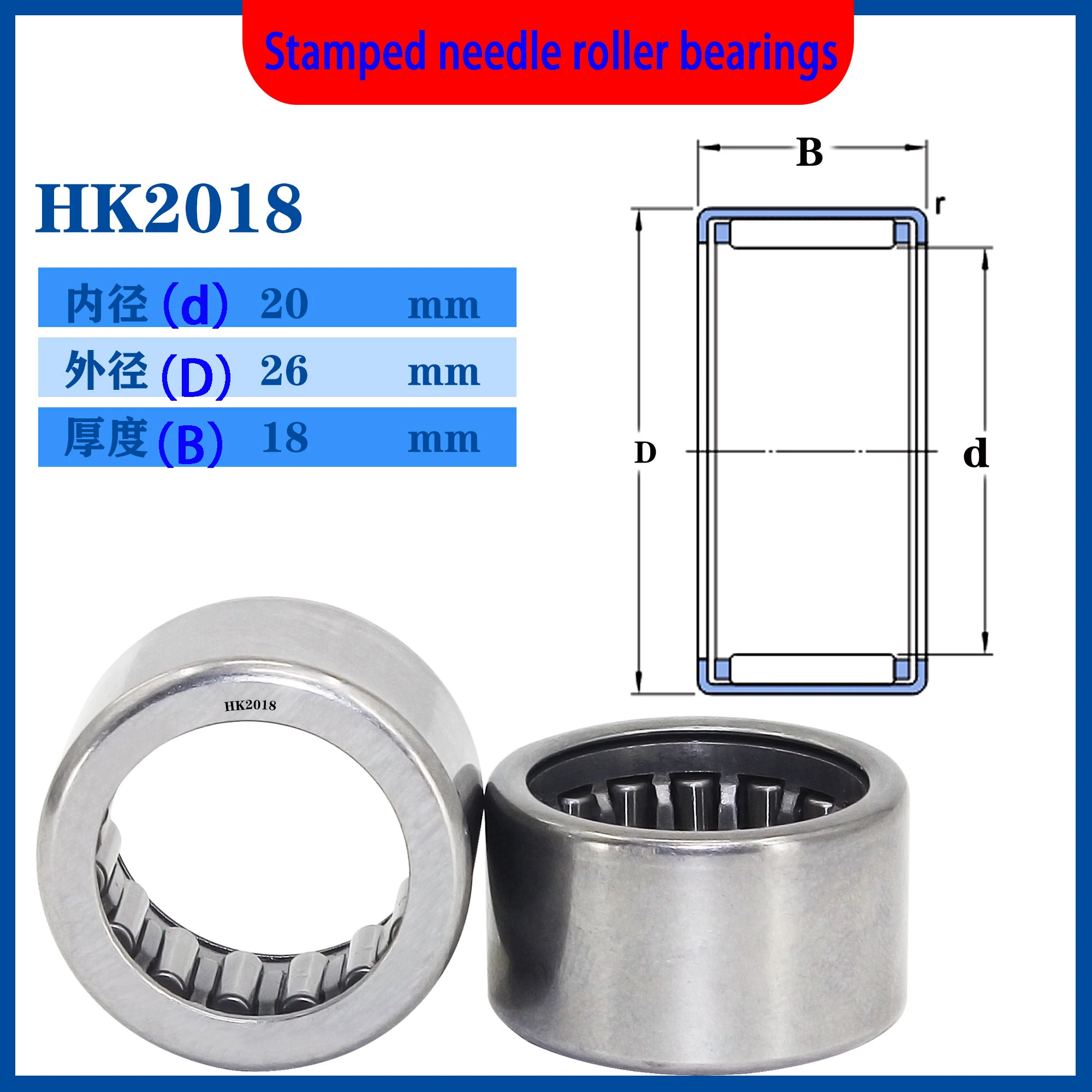

HK2018 : 20*26*18 mm
Material: Bearing Steel
Packing : 10 pcs
Structure & introduction
The outer ring of drawn cup needle roller bearing is punched with the high-quality steel sheet. The
outer ring has thin wall.
The drawn cup needle roller bearing has the characteristics of small radial section area, large load
carrying capacity, less inertia and economic manufacture. It is suitable for small section height, or
when the housing bore isn't used for raceway, this type is recommended to use. The bearing is
assembled into the housing bore under a certain pressure without further axial location.
The drawn cup needle roller bearing generally takes its shaft diameter as the internal raceway.
However, the proper LR type inner ring can be used in accordance with application condition.

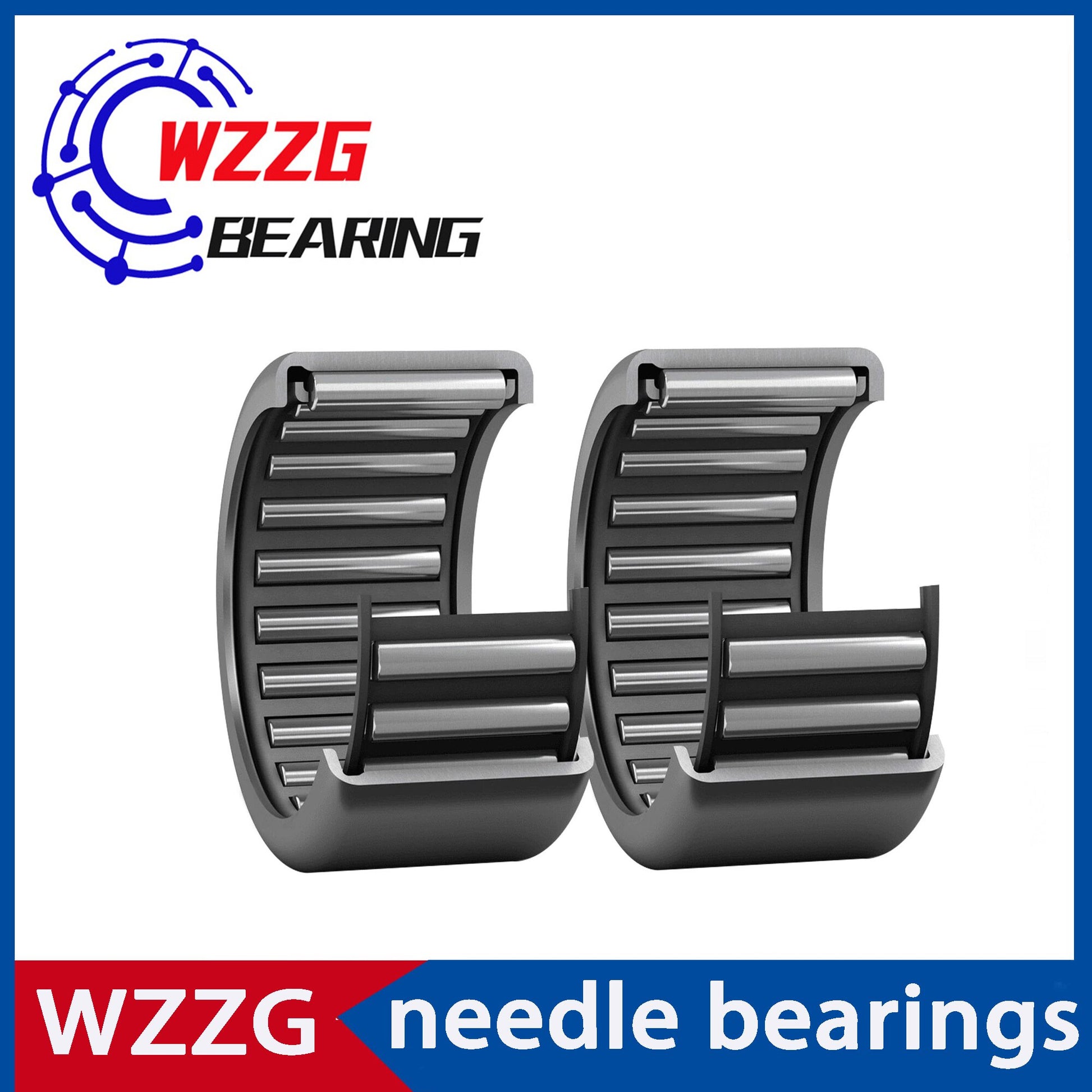

The drawn cup needle roller bearing has two structures-with retainer and with full of needles. They
are divided into opened type and close-end type. The structure with retainer has the single seal
ring and double seal ring. The structure with full of needles has a large load carrying capacity.
Characteristics & classification
The outer ring of drawn cup needle roller bearing is punched with the steel sheet. It has the small
sectional height and the large load carrying capacity and is suitable for economic mass
production. The interference fit between outer ring and bearing housing is applied to this kind of
needle roller bearing without axial fixing device. Even for the condition of high load, it fully
maintains bearing function either. In addition, with the large grease storage capacity, it is
unnecessary to add grease for a long-term operation.
Since one end of the close-end bearing is sealed, it is suitable for the end of shaft with bearing the
small axial sliding force.
Model HK, TA, TLA, open-end drawn cup needle roller bearings with retainer,
Model BK close-end drawn cup needle roller bearing with retainer,
Model SCE, BA, J, JH, drawn cup needle roller bearings (Inch series)
