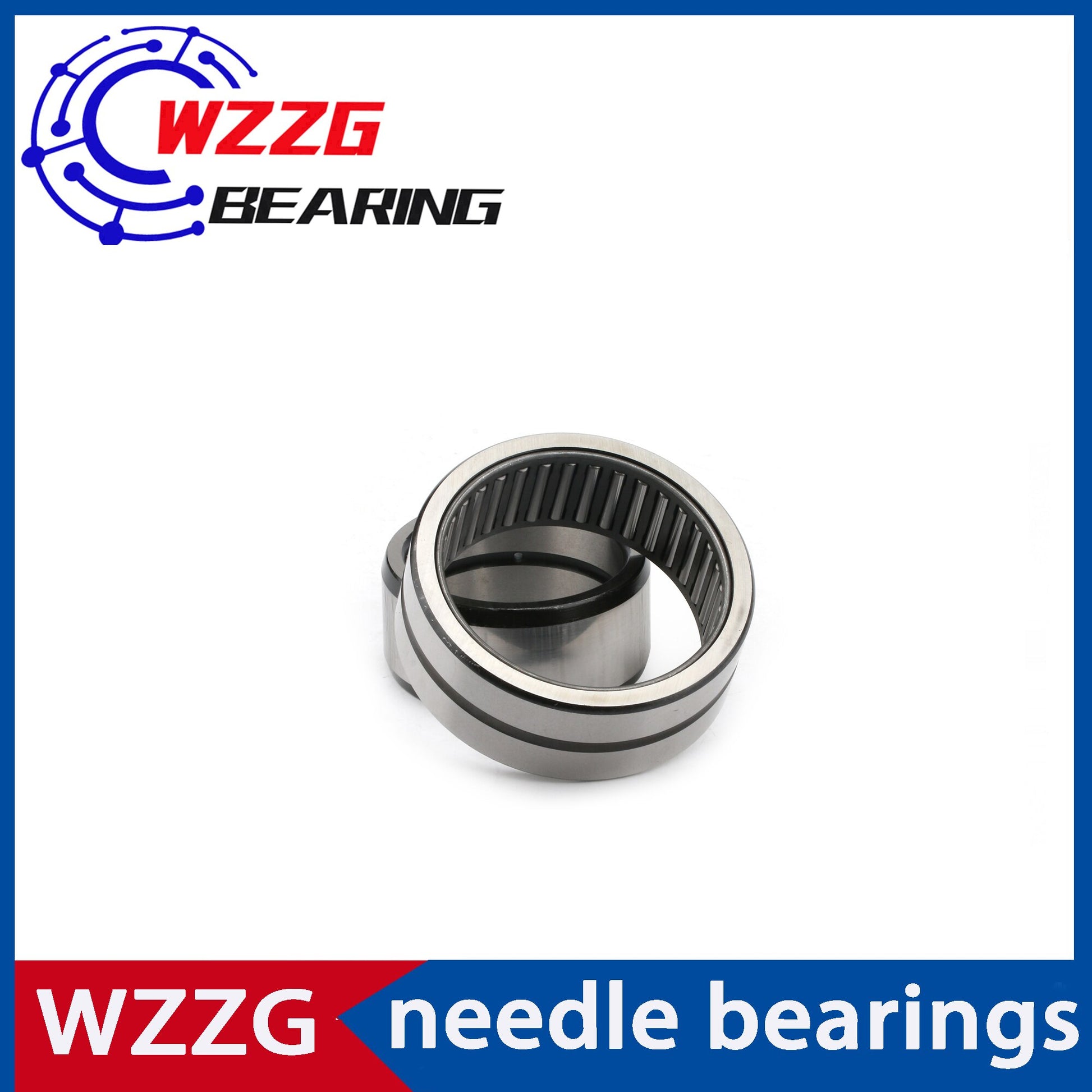

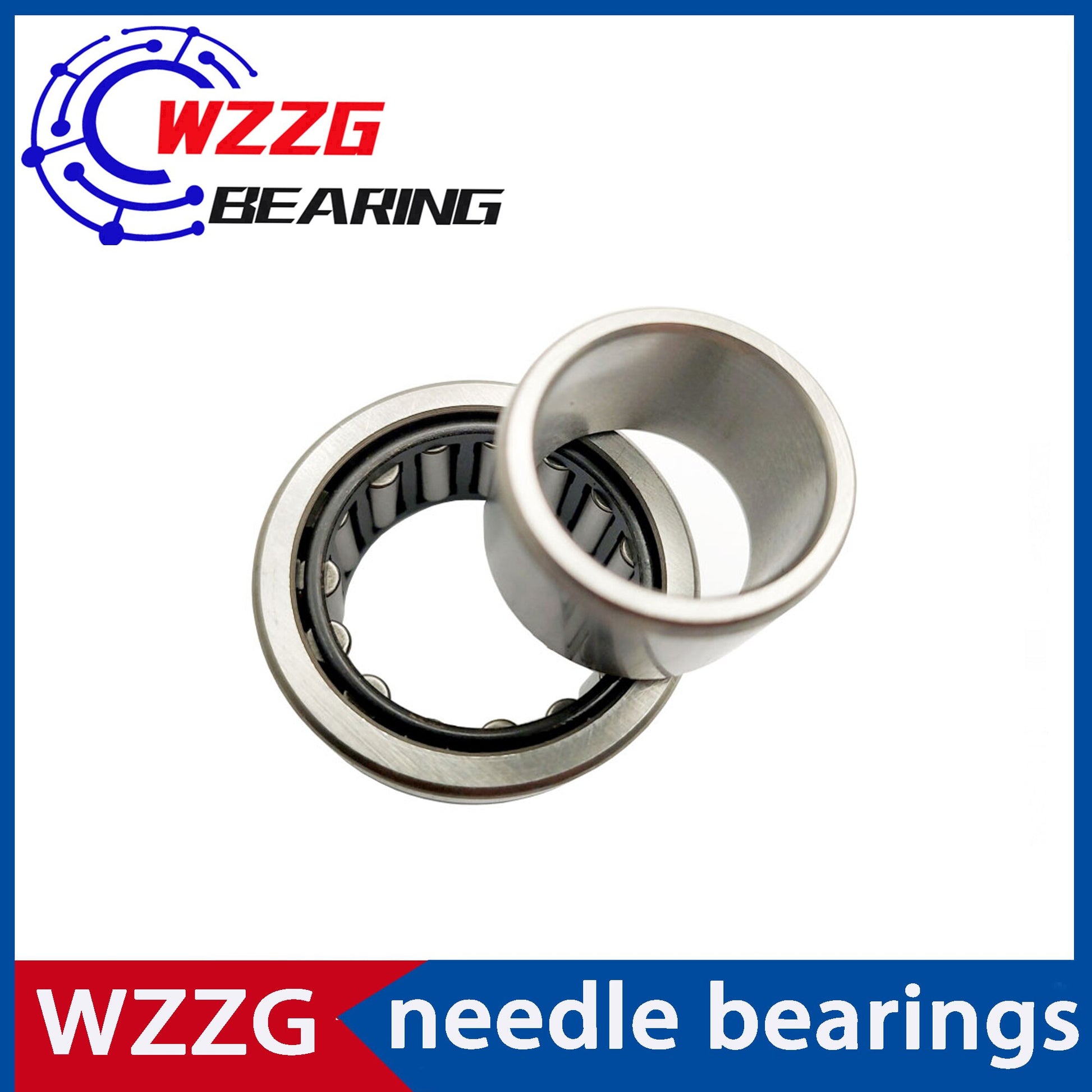

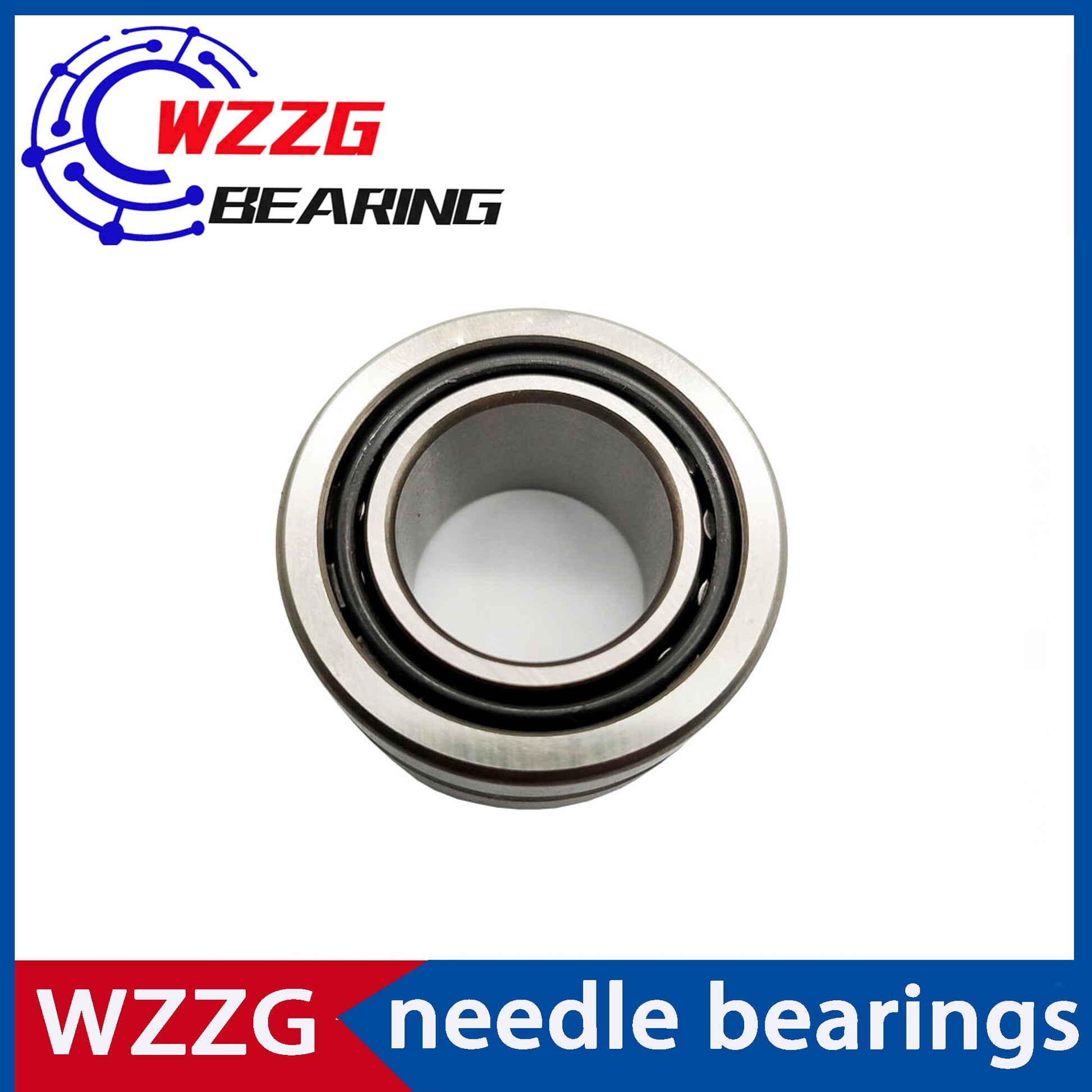

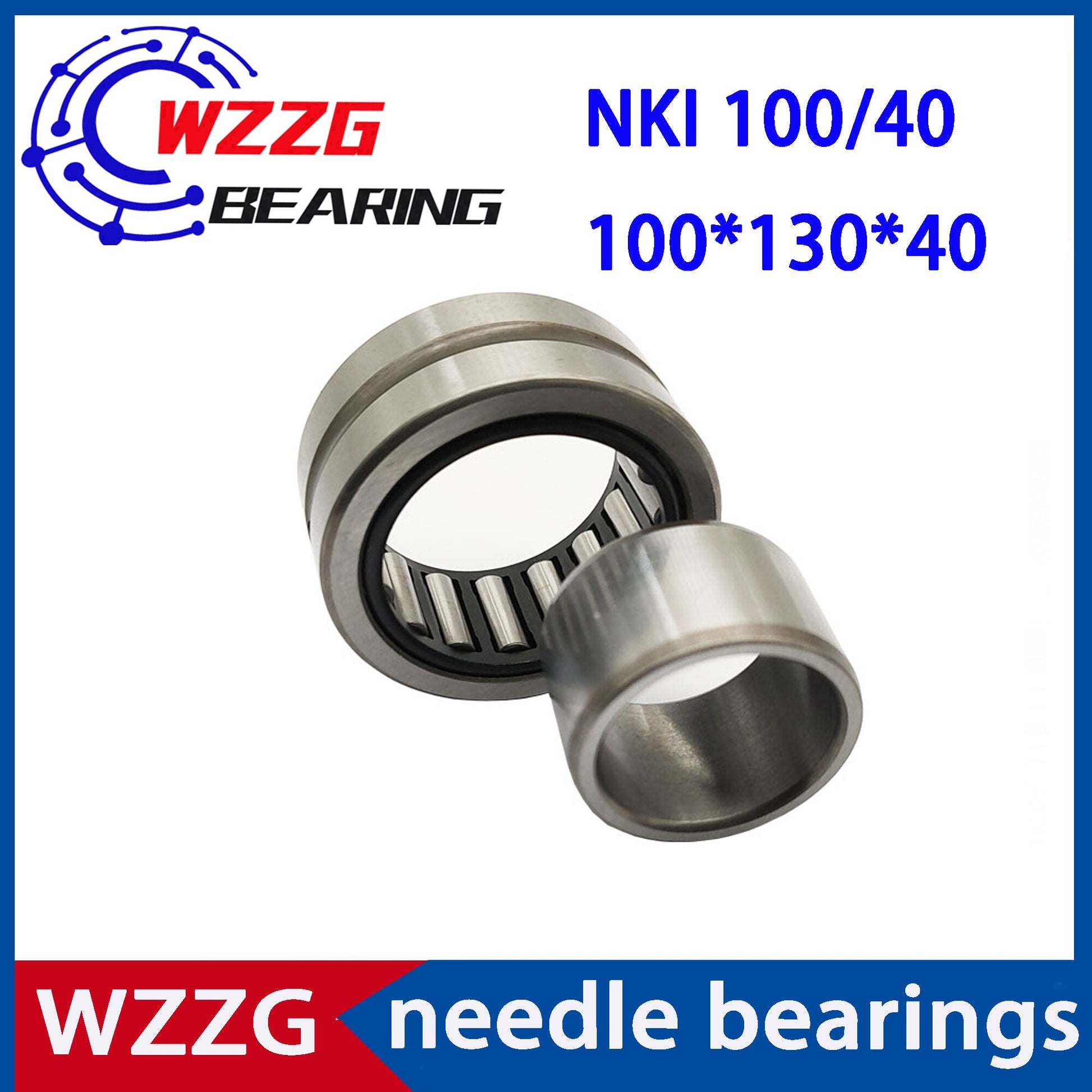

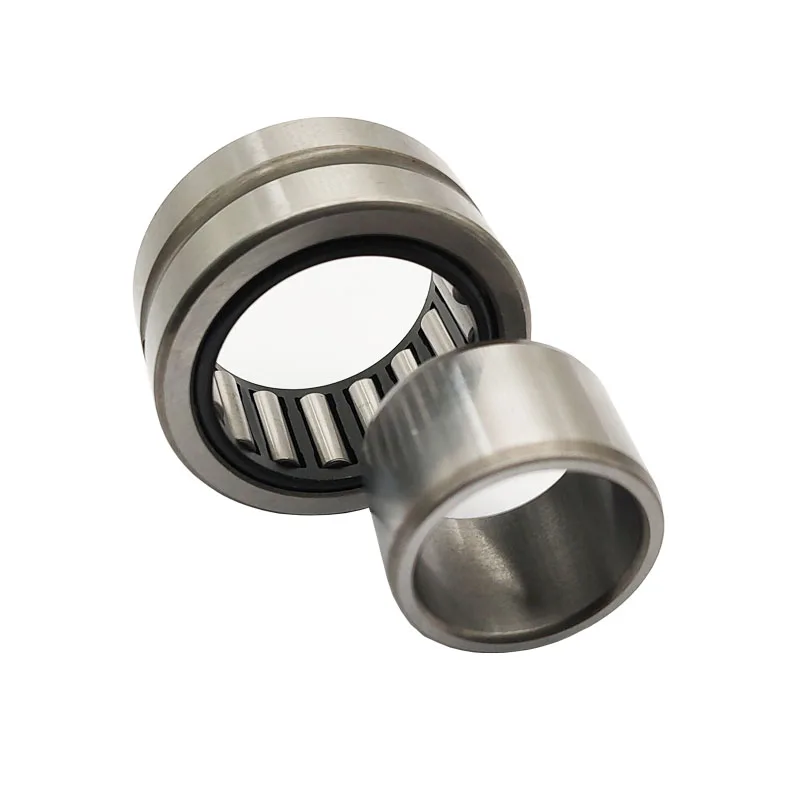

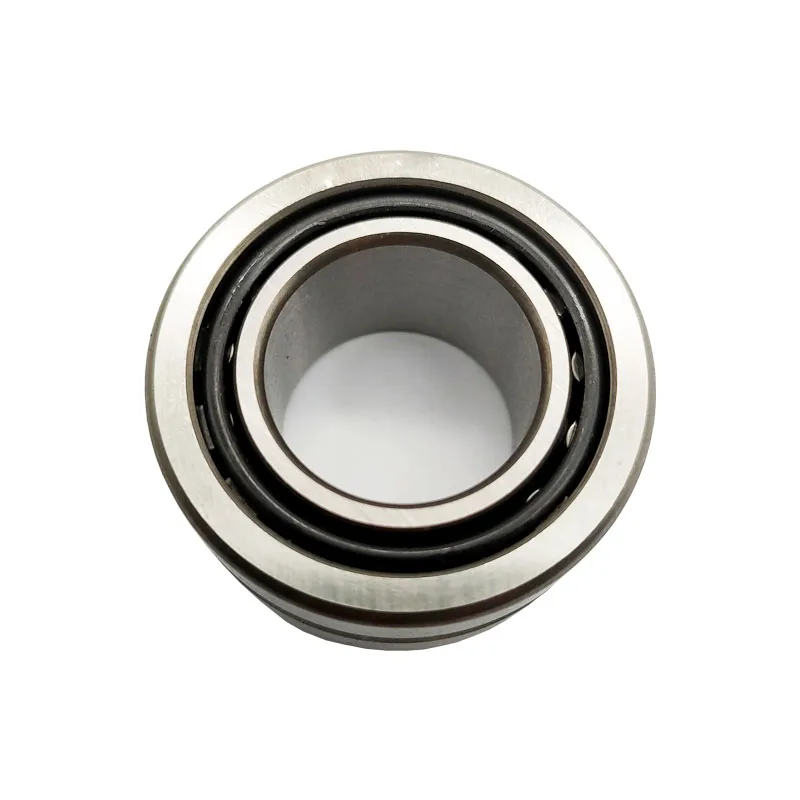

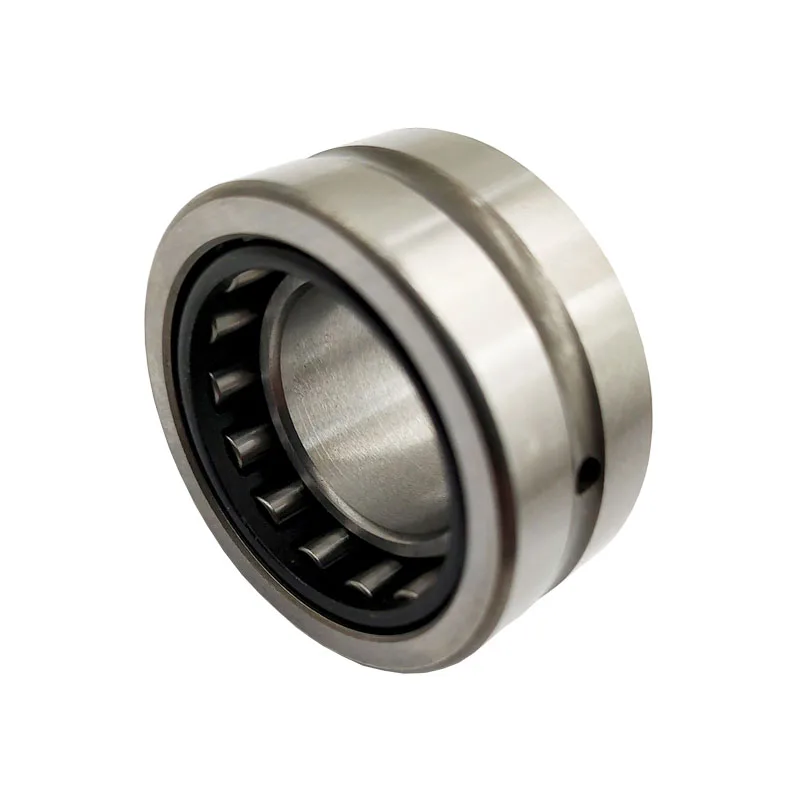

WZZG NKI 100/40 bearing size 100*130*40 (1 PC ) solid ring needle roller bearing with inner ring

WZZG Needle roller bearing with inner ring NKI 100/40

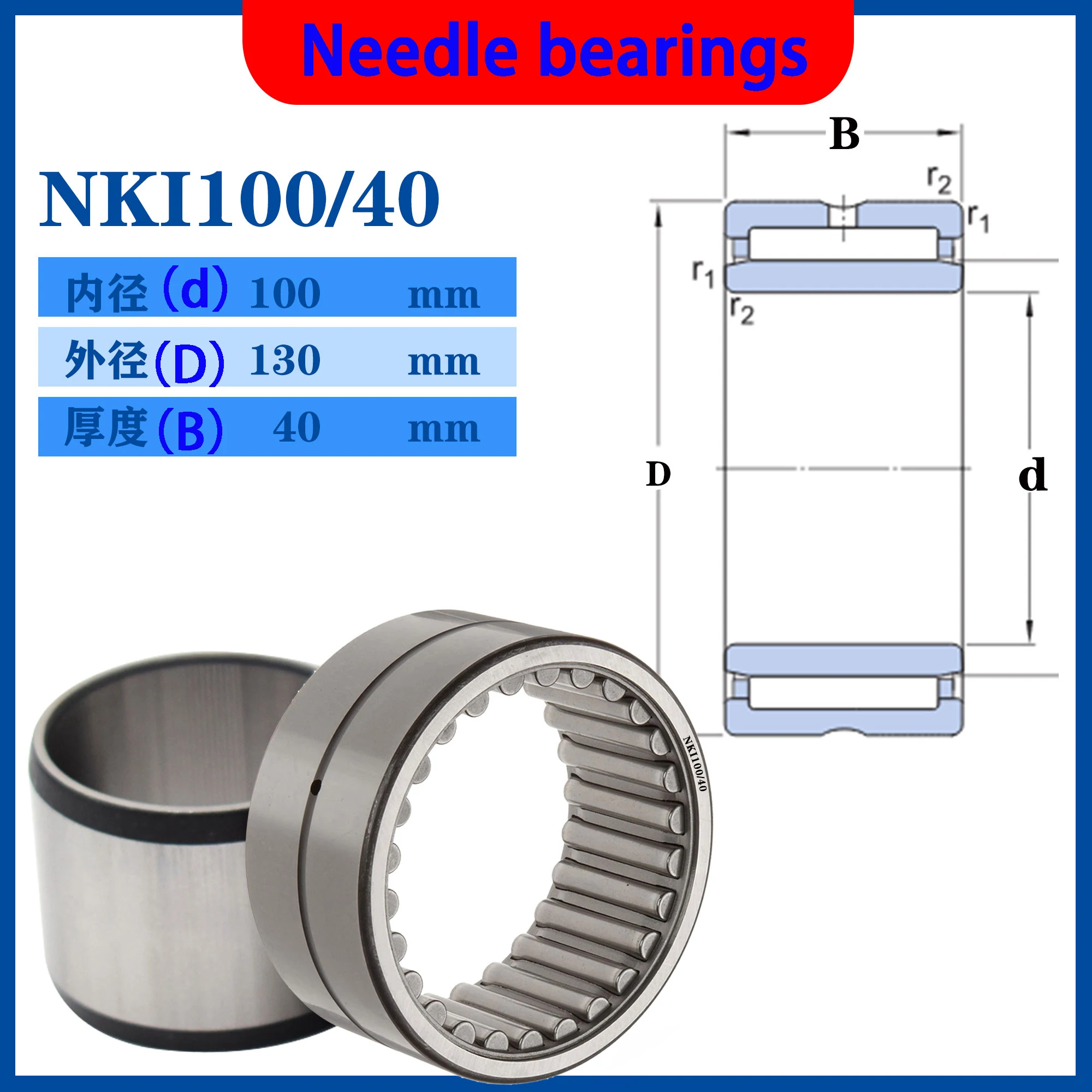

Model Number: NKI100/40



Type: Needle Roller Bearings With Inner Ring



Size: 100*130*40 mm



Inner diameter (mm):100 mm



Outer diameter (mm): 130 mm



Thickness (mm): 40 mm



Torque Capacity: Standard



Material: bearing steel



Number of rolling body columns : single column

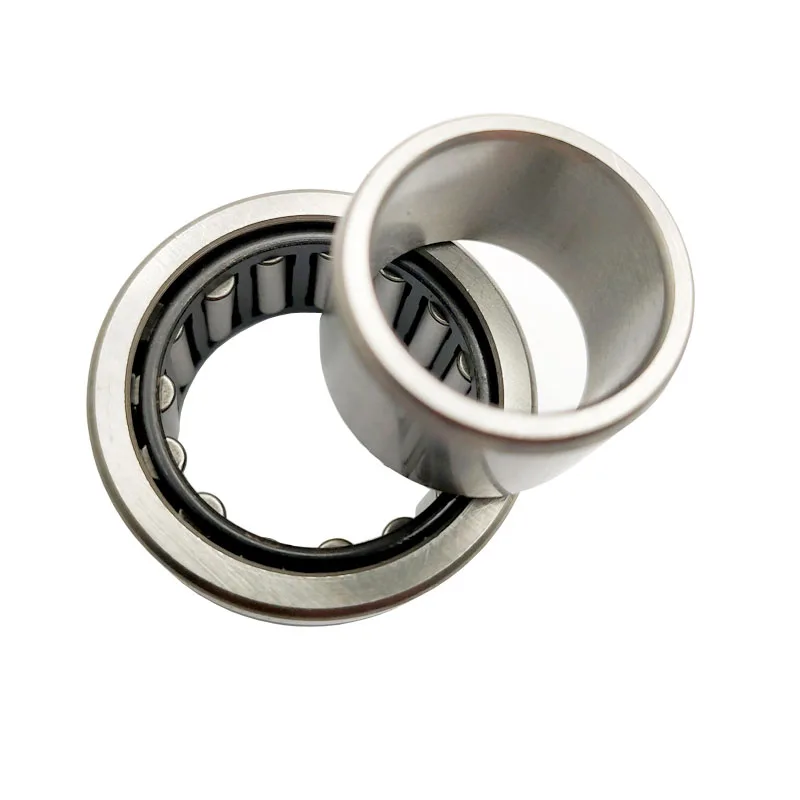

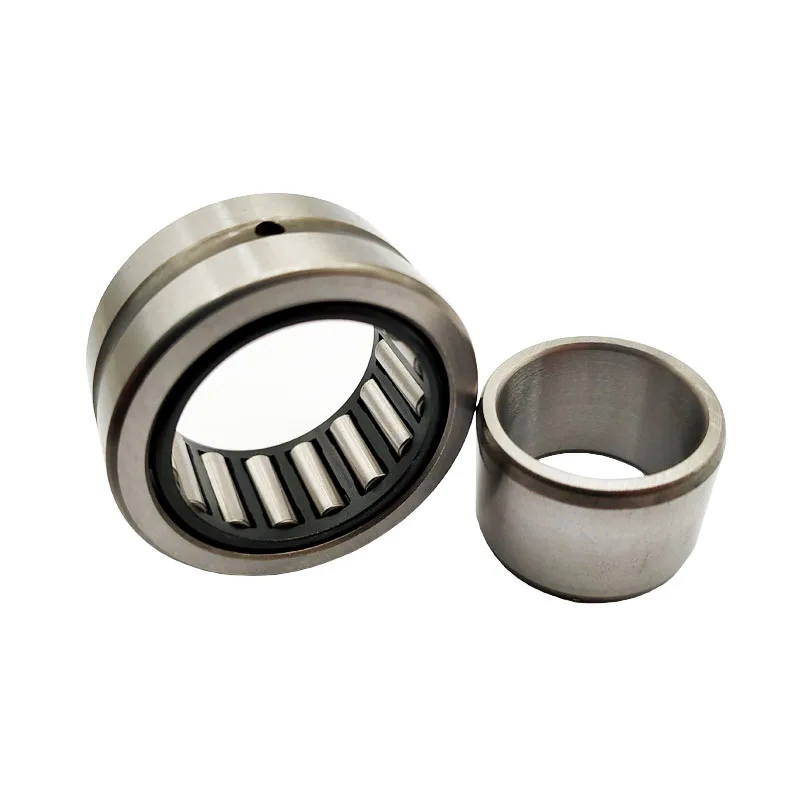

Solid Collar needle roller bearing

 The solid collar needle roller bearing has compact structure, small radial size and large load carrying capacity. It is



suitable for the parts of which the radial overall size is limited. It is also wide applied to the situation where the shaft



or housing has the swinging motion. In general, the needle roller bearing only withstands the radial load, not the



axial load. When the shaft has axial load, it can be used in combination with other bearings. However, it does not



limit the axial shift of shaft or housing. The limiting rotational speed of needle roller bearing is lower. In high



rotational speed of main machine, the needle roller bearing with cage shall be chosen as far as possible. In



compassion with other types of needle roller bearings, under the situation of same radial size, the needle roller



bearing has the large load carrying capacity and high rigidity but has high friction torque.



This kind of bearing has many series with different structure and size. It is requested that the hardness, processing



accuracy and surface roughness of shaft journal surface and rolling surface of outer housing be same as those of the



collar of bearing. As for the needle roller with G2 class, the diameter varies within 2μm in group. Except the full



complement needle roller bearings, they have the rigid cages, which can correctly guide the parallel axis line of



needle roller.
