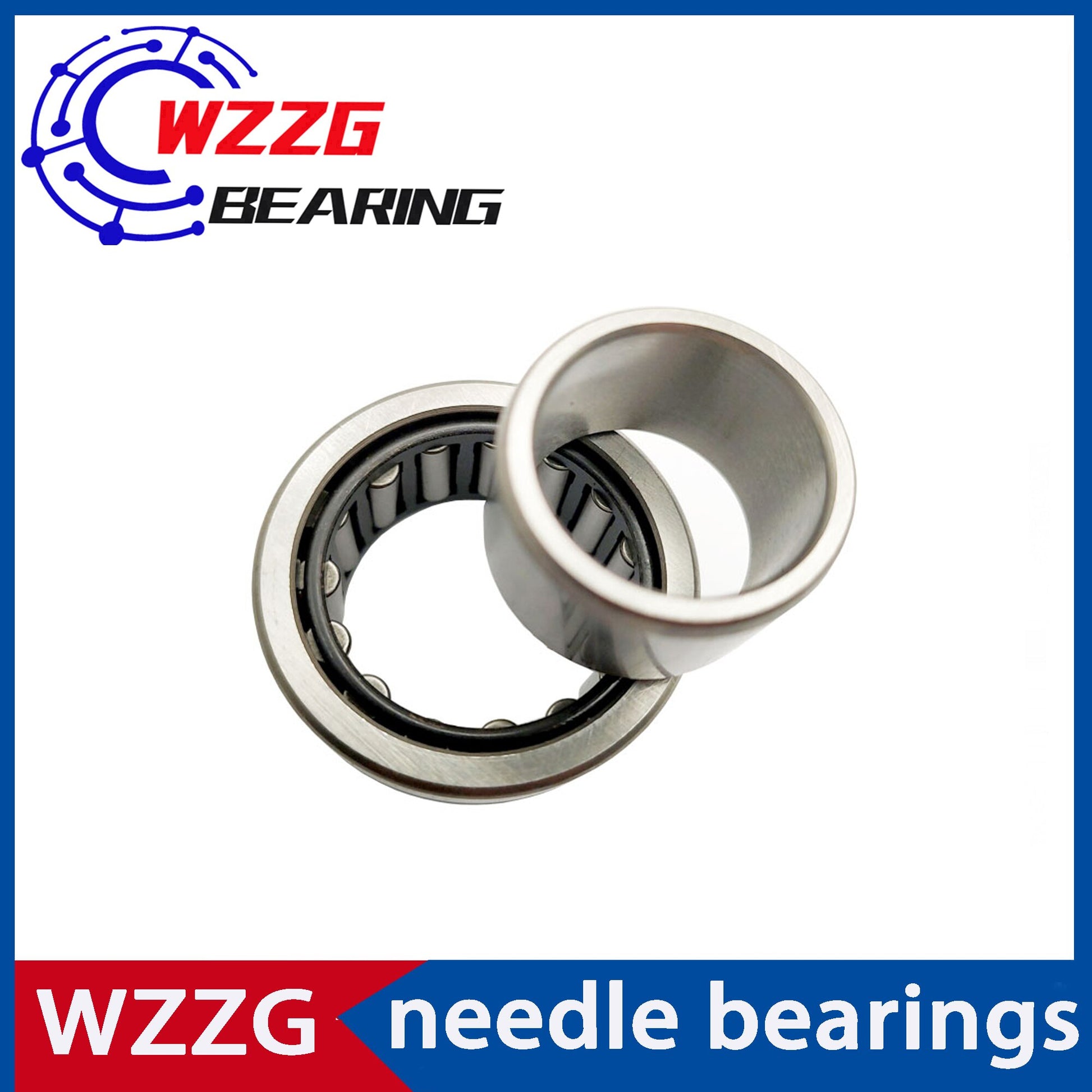

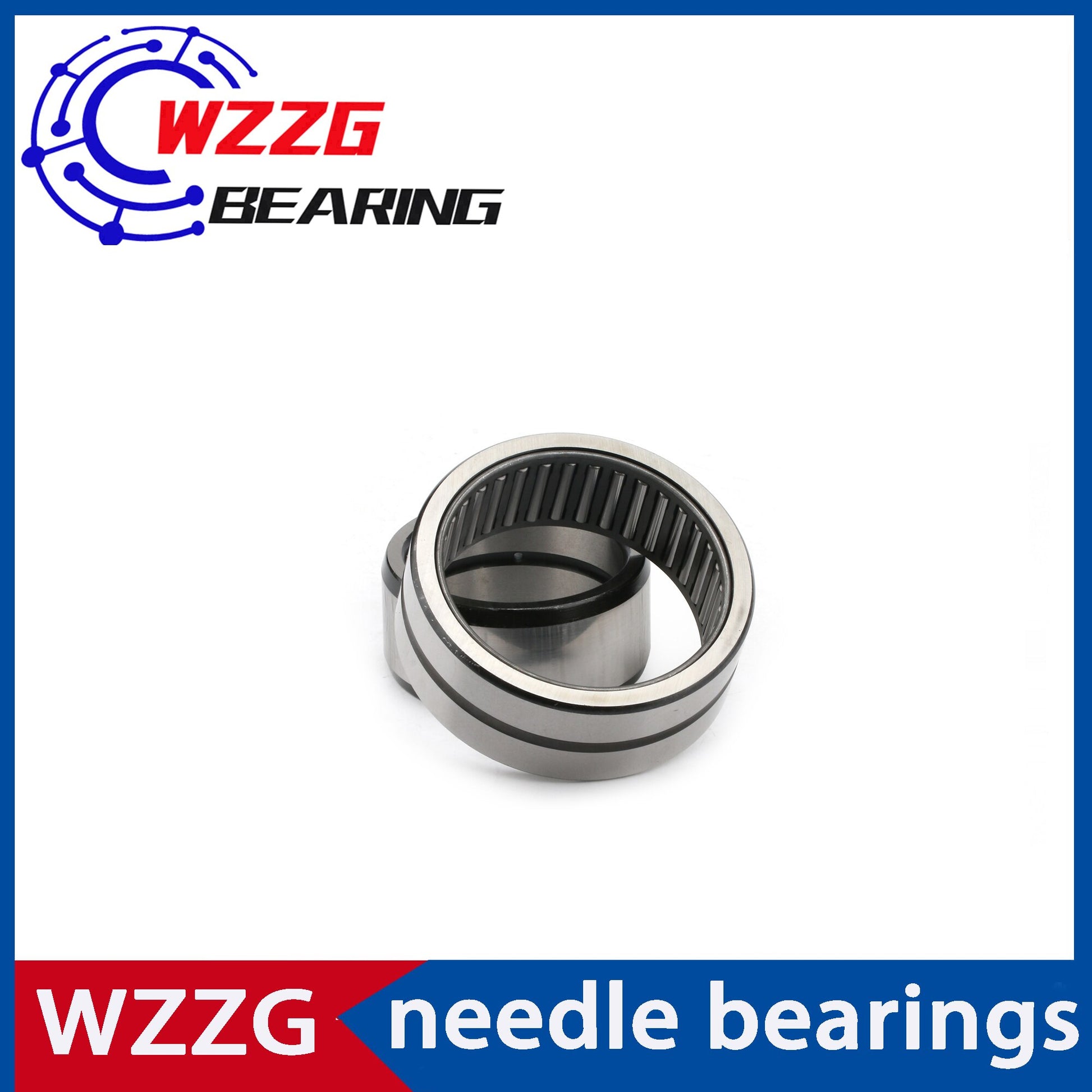

WZZG NKI 90/26 bearing size 90*120*26 (1 PC ) solid ring needle roller bearing with inner ring
Regular price
$34.49
WZZG Needle roller bearing with inner ring NKI 90/26
Model Number: NKI85/26
Type: Needle Roller Bearings With Inner Ring
Size: 90*120*26 mm
Inner diameter (mm):90 mm
Outer diameter (mm): 120 mm
Thickness (mm): 26 mm
Torque Capacity: Standard
Material: bearing steel
Number of rolling body columns : single column
Solid Collar needle roller bearing
The solid collar needle roller bearing has compact structure, small radial size and large load carrying capacity. It is
suitable for the parts of which the radial overall size is limited. It is also wide applied to the situation where the shaft
or housing has the swinging motion. In general, the needle roller bearing only withstands the radial load, not the
axial load. When the shaft has axial load, it can be used in combination with other bearings. However, it does not
limit the axial shift of shaft or housing. The limiting rotational speed of needle roller bearing is lower. In high
rotational speed of main machine, the needle roller bearing with cage shall be chosen as far as possible. In
compassion with other types of needle roller bearings, under the situation of same radial size, the needle roller
bearing has the large load carrying capacity and high rigidity but has high friction torque.
This kind of bearing has many series with different structure and size. It is requested that the hardness, processing
accuracy and surface roughness of shaft journal surface and rolling surface of outer housing be same as those of the
collar of bearing. As for the needle roller with G2 class, the diameter varies within 2μm in group. Except the full
complement needle roller bearings, they have the rigid cages, which can correctly guide the parallel axis line of
needle roller.
